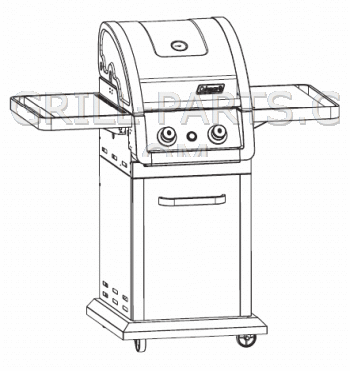

Coleman Even Heat 85-3046-2 Grill Parts

Cooking grid not known for Coleman model 85-3046-2. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Coleman cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Porcelain steel Heat Distribution Plate for Coleman model 85-3046-2. Sold individually.

Part Number: 93331
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 13/16”
Material: porcelain steel
Weight: 1.4

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger.

• 1.5 volt
• Has two (2) spark outlets (male spade connector)
• Has two (2) male spade connectors for trigger (button) part #03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03322
Dimensions: 2 5/8” x 2”
Weight: 0.5

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 05223
Material: ceramic
Weight: 0.1

round trigger switch for AA and AAA spark generators; use original wires

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03153
Dimensions: 17 3/4” x 1”
Weight: 0.1

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

• Requires minimum 3/8” mounting hole
• Single 1 3/8” probe
• Threaded portion of probe stops at 1/2” from base
• See photo for details

Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
