Charbroil 464310209 Grill Parts

Charbroil logo



Charbroil 464310209

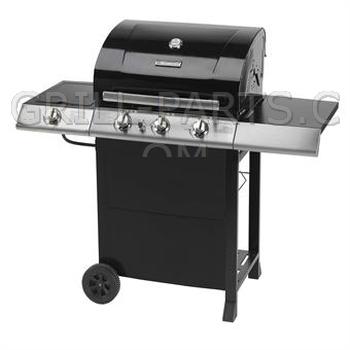

Kenmore 3-Burner LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 464310209 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 464310209 owners manual and diagrams
Click the small images on the right to view Charbroil 464310209 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 464310209-463658949030-PartsExpS1.jpg

Replacement gas grill parts for Charbroil model: 464310209
On this page you'll find all of the parts that fit model Charbroil 464310209. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 464310209 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



464310209 Burners

80018369 / CBP6
Click for photos
Stainless steel burner for Charbroil model 464310209.

Part Number: CBP6 (Replaces Charbroil 80018369)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$38.24


==> All Charbroil Burners.






464310209 Burner Brackets and Carryovers

80009028 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil 80009028)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90


==> All Charbroil Burner Brackets and Carryovers.






464310209 Cooking Grids

80014381 / CG-74P-CI-X3
Click for photos
Cast iron cooking grids for Charbroil model 464310209. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3 (Replaces Charbroil 80014381)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.25


504S3-1PC
Click for photos
Commerical grade 304 stainless steel cooking grid with 1/4” diameter rods for Charbroil model 464310209.

Part Number: 504S3-1PC
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 7/8”
Material: stainless steel wire
Weight: 4.0

$72.28


66124-1PC
Click for photos
Cast iron cooking grid for Charbroil model 464310209. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$37.52


CG-74P-CI
Click for photos
Cast iron cooking grid for Charbroil model 464310209. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61


10225-T536
Click for photos
cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 464310209.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.52


==> All Charbroil Cooking Grids.






464310209 Heat Plates

80018051 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 464310209.

Part Number: CBHP6 (Replaces Charbroil 80018051)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47


==> All Charbroil Heat Plates.






464310209 Igniter Components

80009029 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil 80009029)
Material: ceramic
Weight: 0.1

$12.47


G501-0010-W1 / 04432
Click for photos
Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04432 (Replaces Charbroil G501-0010-W1)
Dimensions: 4”
Material: ceramic
Weight: 0.1

$10.35


80018396 / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Charbroil 80018396)
Weight: 0.3

$34.08


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.


This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

$16.16


03750
Click for photos
20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$6.01


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$8.29


IG-46B
Click for photos
Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.30


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35


==> All Charbroil Igniter Components.






464310209 Knobs and Handles

80014405 / 01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80014405)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84


01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.61


==> All Charbroil Knobs and Handles.






464310209 Heat indicators and Meat Thermometers

G431-0020-W2 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W2)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$18.21


==> All Charbroil Heat indicators and Meat Thermometers.






464310209 Accessories

00220
Click for photos
GrillPro Texas hickory BBQ wood chips. 800g. For use in all BBQ Grill and smoker applications.

Part Number: 00220
Weight: 2.0

$6.87


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92


11040
Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

  • Ideal for searving or grilling appetizers
  • Wide end for easy handling


Part Number: 11040
Dimensions: 7
Weight: 0.4

$4.75


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$9.36


RR-3
Click for photos
Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

$13.71


SDDPS
Click for photos
Stainless Steel Scraper for Phoenix and Holland Drip Trays

Part Number: SDDPS
Dimensions: 20
Weight: 0.30

$18.07


==> All 464310209 Accessories.
