Charbroil 463440109B Grill Parts

Charbroil logo



Charbroil 463440109B

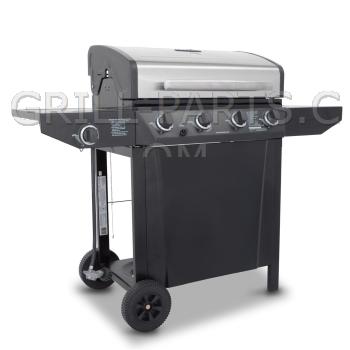

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463440109B - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463440109B owners manual and diagrams
Click the small images on the right to view Charbroil 463440109B exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463440109B-46356698906839-PartsExpS1.jpg

Replacement BBQ grill parts for Charbroil model: 463440109B
This page shows all of the parts we know fit model Charbroil 463440109B. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463440109B BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463440109B Burners

G432-1700-W1 / CBP6
Click for photos
Stainless steel burner for Charbroil model 463440109B.

Part Number: CBP6 (Replaces Charbroil G432-1700-W1)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$35.43

Qty


==> All Charbroil Burners.






463440109B Burner Brackets and Carryovers

G413-0004-W2 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil G413-0004-W2)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


==> All Charbroil Burner Brackets and Carryovers.






463440109B Cooking Grids

CG-97P-CI
Click for photos
Cast Iron Cooking Grid - Charbroil for Charbroil model 463440109B.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

$31.88

Qty


G432-1800-W1 / 50193
Click for photos
Channel formed U-shaped porcelain steel cooking grids for Charbroil model 463440109B. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193 (Replaces Charbroil G432-1800-W1)
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

$85.71

Qty


CG-97P-CI-X3
Click for photos
Cast Iron Cooking Grids for Charbroil model 463440109B. SET OF THREE (3).

Part Number: CG-97P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

$84.90

Qty


==> All Charbroil Cooking Grids.






463440109B Heat Plates

G430-0005-W1 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463440109B.

Part Number: CBHP6 (Replaces Charbroil G430-0005-W1)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47

Qty


==> All Charbroil Heat Plates.






463440109B Igniter Components

TS-IG2006
Click for photos
Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$19.40

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


F401-0012-W1 / IGEIB2-B
Click for photos
Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B (Replaces Charbroil F401-0012-W1)
Weight: 0.3

$34.08

Qty


G501-0010-W2 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil G501-0010-W2)
Material: ceramic
Weight: 0.1

$12.47

Qty


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


==> All Charbroil Igniter Components.






463440109B Heat indicators and Meat Thermometers

G431-0020-W2 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W2)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.82

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463440109B Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $27.05
Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 463440109B Accessories.
