Charbroil 463612509 Grill Parts

Charbroil logo



Charbroil 463612509

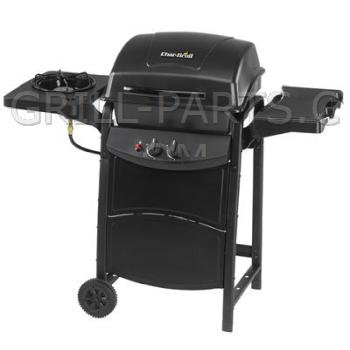

Kenmore 2-Burner LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463612509 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463612509 owners manual and diagrams
Click the small images on the right to view Charbroil 463612509 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463612509-463538449030-PartsExpS1.jpg

Replacement grill parts to fit Charbroil model: 463612509
On this page you'll find all of the parts that fit model Charbroil 463612509. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463612509 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463612509 Cooking Grids

80009712 / CG-6
Click for photos
Chrome plated cooking grid for Charbroil model 463612509. Made in USA.

Part Number: CG-6 (Replaces Charbroil 80009712)
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 20”
Material: Chrome steel
Weight: 2.9

$30.04

Qty


==> All Charbroil Cooking Grids.






463612509 Heat Plates

80008387 / 96301
Click for photos
Porcelain steel Flavor Activator for Charbroil model 463612509. Sold individually.

Part Number: 96301 (Replaces Charbroil 80008387)
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 6 1/8”
Material: porcelain steel
Weight: 1.5

$27.16

Qty


==> All Charbroil Heat Plates.






463612509 Igniter Components

03080
Click for photos
Electrode, collector box with connector wire that has a female spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03080
Material: ceramic
Weight: 0.05

$8.03

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


80008490 / UP-4B
Click for photos
Universal push-button igniter. Round male connector. Includes locking nut.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-4B (Replaces Charbroil 80008490)
Weight: 0.3

$8.38

Qty


03199C
Click for photos
Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


==> All Charbroil Igniter Components.






463612509 Knobs and Handles

01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.87

Qty


01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.26

Qty


==> All Charbroil Knobs and Handles.






463612509 Accessories

BP-7
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$9.75

Qty


41333
Click for photos
Stainless steel chicken roaster. Commonly called Beer Can roasters.
  • The best way to roast poultry on the grill
  • For use in barbecues and ovens
  • Dishwasher safe
  • Includes rack, rack support, and basting brush


Part Number: 41333
Material: stainless steel
Weight: 0.10

$19.85

Qty


WB-8
Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

$18.95

Qty


==> All 463612509 Accessories.
