Charbroil 463420708 Grill Parts

Charbroil logo



Charbroil 463420708

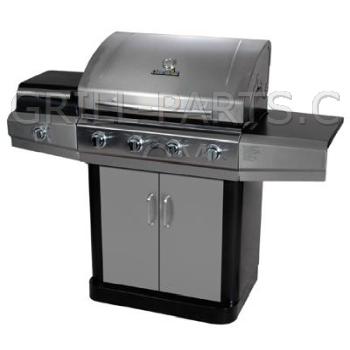

Char-Broil 4-Burner LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463420708 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463420708 owners manual and diagrams
Click the small images on the right to view Charbroil 463420708 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463420708-463564929130-PartsExpS1.jpg

Replacement grill parts for Charbroil model: 463420708
On this page you'll find all of the parts that fit model Charbroil 463420708. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463420708 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463420708 Burners

80009947 / CBP6
Click for photos
Stainless steel burner for Charbroil model 463420708.

Part Number: CBP6 (Replaces Charbroil 80009947)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$38.24


==> All Charbroil Burners.






463420708 Burner Brackets and Carryovers

80009949 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil 80009949)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90


==> All Charbroil Burner Brackets and Carryovers.






463420708 Cooking Grids

CG-97P-CI
Click for photos
Cast Iron Cooking Grid for Charbroil model 463420708. Porcelain treated, matte finish. SOLD INDIVIDUALLY.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

$33.50


80008076 / CG-97P-CI-X3
Click for photos
Cast Iron Cooking Grids for Charbroil model 463420708. Porcelain treated, matte finish. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Charbroil 80008076)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 14.0

$87.42


==> All Charbroil Cooking Grids.






463420708 Heat Plates

80008074 / CBHP5
Click for photos
Stainless steel heat plate/Flame Tamer for Charbroil model 463420708.

Part Number: CBHP5 (Replaces Charbroil 80008074)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.7

$32.07


==> All Charbroil Heat Plates.






463420708 Igniter Components

TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.


This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

$16.16


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$8.29


80009948 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil 80009948)
Material: ceramic
Weight: 0.1

$12.47


80009955 / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Charbroil 80009955)
Weight: 0.3

$34.08


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35


==> All Charbroil Igniter Components.






463420708 Knobs and Handles

01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.61


80008675 / 01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80008675)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84


==> All Charbroil Knobs and Handles.






463420708 Heat indicators and Meat Thermometers

G431-0020-W2 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W2)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$18.21


==> All Charbroil Heat indicators and Meat Thermometers.






463420708 Accessories

SSST
Click for photos
Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00

SALE  $27.30

US10
Click for photos

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks



Part Number: US10
Weight: 5.00

$36.78


11040
Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

  • Ideal for searving or grilling appetizers
  • Wide end for easy handling


Part Number: 11040
Dimensions: 7
Weight: 0.4

$4.75


14913
Click for photos

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.



Part Number: 14913
Material: stailess steel
Weight: 0.5

$14.41


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64


WB-7
Click for photos
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.23


==> All 463420708 Accessories.
