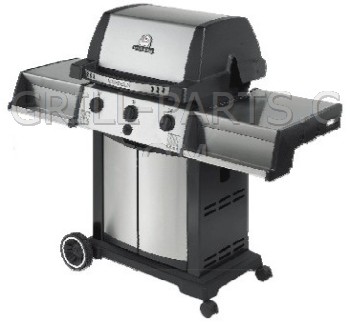

Broil King Sovereign 20 9877-17 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9877-17. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Part Number: 10390-E20
Dimensions: 14 3/8” x 1 1/4”
Material: Stainless steel
Weight: 0.75

Genuine OEM Broil King premium stainless steel cooking grid for Broil King model 9877-17. SOLD INDIVIDUALLY, used in sets of three or four.

Part Number: S12033S
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 8 5/16”
Material: Stainless steel
Weight: 4.8

Genuine OEM Broil King stainless steel Flav-R-Wave for Broil King model 9877-17.

Part Number: 10222-E400
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 6 1/4”
Material: Stainless steel
Weight: 1.25

Replacement for stainless steele baffle. Fits Signet/Sovereign.

Part Number: 10222-E402-R
Dimensions: 9” x 7 7/8”
Material: stainless steel
Weight: 0.76

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

Genuine OEM Broil King collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E400A
Dimensions: 20
Weight: 0.75

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 58” Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 67487
Weight: 3.0

Broil King 58” premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 68487
Weight: 5.0

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

CONTROL KNOB - BEZEL BLK

Part Number: 10472-E38
Weight: 0.1

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Push nut 3/8

Part Number: S21420
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10184-E78A
Dimensions: 9 3/4
Weight: 0.36

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Dimensions: 10
Weight: .25

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Dimensions: 10
Weight: .25

END CAP SIDE SHELF RHS

Part Number: 10711-E47
Weight: 1.0

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
