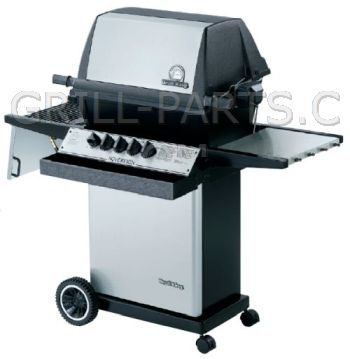

Broil King Sovereign 90 956-94S Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 956-94S. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King Side Burner for Broil King model 956-94S. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Genuine OEM Broil King Cover, side burner for Broil King model 956-94S.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

Genuine OEM Broil King side burner grid for Broil King model 956-94S.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

Stainless Steel cooking grid for Broil King model 956-94S. 50% T45

Part Number: 10225-T424
Weight: 1.0

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 956-94S. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Universal 3 outlet rotary spark generator. Includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-8B
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 58” Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 67487
Weight: 3.0

Broil King 58” premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 68487
Weight: 5.0

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Porcelain Coated Grill Topper.
11” x 16” Single draw construction for improved rigidity. Stainless steel handles and raised contours for improved functionality.

Part Number: 97122
Dimensions: 16” x 11 1/2”
Material: porcelain steel
Weight: 1.10

Stainless Steel Ash Cleaning Tray For Use In Ceramic Kamado Grills

Part Number: BRACT
Weight: 1.0
