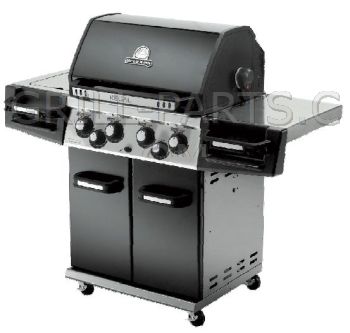

Broil King Regal 490 9761-87 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9761-87. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Side burner lid IR stainless steel for Broil King model 9761-87. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

Aftermarket reversible heavy cast iron cooking grid for Broil King model 9761-87.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Fits: Broil King 500/625/750 series grills.

NOTE: This aftermarket part, made of the same materials as the original, is a perfect replacement for original part# 22005-281 but at a much lower cost.

Part Number: 22005-281-R
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 6 1/16”
Material: Cast iron
Weight: 5.0

Cast iron cooking grid for Broil King model 9761-87. Porcelain treated, flat matte finish. Sold individually, number required varies, check your grill.

Part Number: 67845-1PC
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 6 1/16”
Material: matte cast iron
Weight: 5.5

Cast iron cooking grids, porcelain treated, flat matte finish for Broil King model 9761-87.

Part Number: 67845
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 30 5/16”
Material: matte cast iron
Weight: 27.2

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate / Vaporizer for Broil King model 9761-87. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil King replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

A redesigned four burner one piece upper and lower collector box. Replaces 22225-014 and 22225-014A that are no longer available per manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22025-903
Dimensions: 19 1/8
Material: stainless steel
Weight: .50

Genuine OEM Broil King 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

Genuine OEM Broil King electrode with 14” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Broil King electronic push-button 4-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-247
Weight: 0.5

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil King Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

Genuine OEM Broil King small control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 7/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-668
Weight: 0.1

HANDLE INSERT-REGAL 440/500 *

Part Number: 26005-305
Weight: 1.0

DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

Genuine OEM Broil King warming rack. Porcelain enameled, glossy finish.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22005-991
Dimensions: 26 1/8” x 8 5/8”
Material: Porcelain steel
Weight: 3.10

CONTROL ASSY 4V S/B R/B NG

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 29005-077
Weight: 1.0

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Cotter pin

Part Number: Y-11230
Weight: 0.01

TUBE-REAR BURNER-COMPR.FITTING -- ASSY

Part Number: 20809-957
Dimensions: 22”
Weight: .15

Hinge pin clip.

Part Number: S21233
Weight: 0.01

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

LID BUMPER

Part Number: Y-11231
Weight: 0.01

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks

Part Number: US10
Weight: 5.00

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

• Ideal for searving or grilling appetizers
• Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
