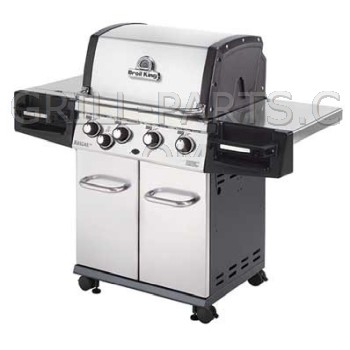

Broil King Regal 440 Pro 9565-27 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9565-27. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Side burner lid IR stainless steel for Broil King model 9565-27. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

Replacement for 22022-284, includes lift/light hole for Broil King model 9565-27. Premium stainless steel cooking grid with 5/16” rods. Is called ”double wide” because some owner's manuals' diagrams show with 4 ”small” panels, but the Parts List shows only two panels required. (DBL WIDE 500/625/750). Also replaces OEM 22022-184; same issue concerning owner's manuals.

Part Number: 22022-284-R
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 13”
Material: stainless steel
Weight: 8.0

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate / Vaporizer for Broil King model 9565-27. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil King replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

A redesigned four burner one piece upper and lower collector box. Replaces 22225-014 and 22225-014A that are no longer available per manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22025-903
Dimensions: 19 1/8
Material: stainless steel
Weight: .50

Genuine OEM Broil King 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

Genuine OEM Broil King electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

Genuine OEM Broil King electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil King Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

Genuine OEM Broil King small control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 7/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-668
Weight: 0.1

BEZEL SS FLAT SML ”250/500/625/750 ”A””

Part Number: 22001-164
Weight: 0.1

LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

CASTER 3” RUBBER W/LEG LEVEL
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-285
Weight: 1.0

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Cotter pin

Part Number: Y-11230
Weight: 0.01

Hinge pin clip.

Part Number: S21233
Weight: 0.01

LID BUMPER

Part Number: Y-11231
Weight: 0.01

GrillPro Wood chips from genuine oak whiskey barrels.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

GrillPro EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

This tank gauge will monitor your propane level, while you grill, and let's you know when you're running low on gas.

The magnetic tank gauge offers fast, accurate propane level monitoring for any size LP tank. The magnetic backing makes it easy to attach, remove, and reuse across multiple tanks—perfect for grilling, camping, patio heaters, and more

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Stainless Steel Ash Cleaning Tray For Use In Ceramic Kamado Grills

Part Number: BRACT
Weight: 1.0
