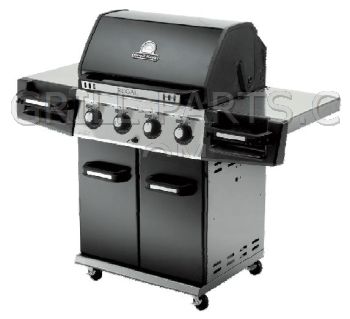

Broil King Regal 420 9761-54 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9761-54. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.
This part is currently out of stock, but more are already on the way and expected to arrive early Nov

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Aftermarket reversible heavy cast iron cooking grid for Broil King model 9761-54.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Fits: Broil King 500/625/750 series grills.

NOTE: This aftermarket part, made of the same materials as the original, is a perfect replacement for original part# 22005-281 but at a much lower cost.

Part Number: 22005-281-R
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 6 1/16”
Material: Cast iron
Weight: 5.0

Cast iron cooking grid for Broil King model 9761-54. Porcelain treated, flat matte finish. Sold individually, number required varies, check your grill.

Part Number: 67845-1PC
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 6 1/16”
Material: matte cast iron
Weight: 5.5

Cast iron cooking grids, porcelain treated, flat matte finish for Broil King model 9761-54.

Part Number: 67845
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 30 5/16”
Material: matte cast iron
Weight: 27.2

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate / Vaporizer for Broil King model 9761-54. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Broil King replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

Genuine OEM Broil King front collector box, top & bottom combo. Includes top 22215-014 and bottom 22225-014. This part has been redesigned by the manufacturer and is now a little shorter but still fully functional in the original grills. Fits 4-Burner grills.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 22225-014A
Dimensions: 21 5/8
Material: stainless steel
Weight: 1.2

Genuine OEM Broil King electrode with 14” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Broil King Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive early Nov

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

HANDLE INSERT-REGAL 440/500 *

Part Number: 26005-305
Weight: 1.0

DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

Genuine OEM Broil King warming rack. Porcelain enameled, glossy finish.

Part Number: 22005-991
Dimensions: 26 1/8” x 8 5/8”
Material: Porcelain steel
Weight: 3.10

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

SHELF STRAP BLK RESIN

Part Number: 23009-608
Weight: 1.0

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Washer

Part Number: S21255
Weight: 0.01

LID BUMPER

Part Number: Y-11231
Weight: 0.01

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Vertical.Chicken Leg and Wing Rack. Stainless steel.

A convenient stainless wire wing rack, the best way to roast chicken wings and legs on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: CLWR
Material: stainless steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
