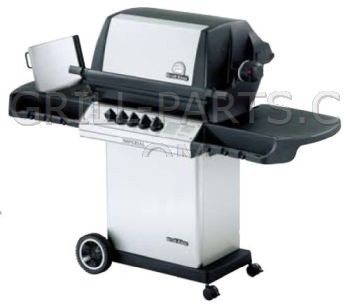

Broil King Imperial 90 969-94 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 969-94. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 969-94.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil King Side Burner for Broil King model 969-94. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Genuine OEM Broil King Cover, side burner for Broil King model 969-94.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

Genuine OEM Broil King reversible heavy cast iron cooking grids SOLD INDIVIDUALLY for Broil King model 969-94.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continous basting

Part Number: 10225-T626
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 8 3/8”
Material: Cast iron
Weight: 7.4

Genuine OEM Broil King side burner grid for Broil King model 969-94.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

Genuine OEM Broil King cast iron Flav-R-Cast. Sold individually, two (2) required.

Each panel is 12 2/3” x 11 13/16”, which yields a total width (for two) of 23 1/4".

Part Number: 10222-T626
Dimension Front-to-Back: 12 3/4”
Dimension Side-to-Side: 11 1/2”
Material: Cast iron
Weight: 7.12

Heat Plate/ Flame Tamer not known for Broil King model 969-94. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Universal 3 outlet rotary spark generator. Includes knob.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-8B
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Shelf support, left.

Part Number: 10184-R581
Weight: 1.5

SHELF SUPPORT RH BLK(18”)

Part Number: 10184-R591
Weight: 1.0

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

Cast iron smoker box with six oblong venting holes. Fill with water-soaked wood chips and add smoke flavor to you food. Designed to release wood smoke.

• Works with both charcoal and gas grills.
• Easy to use and refill.
• Long lasting cast iron.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Vertical.Chicken Leg and Wing Rack. Stainless steel.

A convenient stainless wire wing rack, the best way to roast chicken wings and legs on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: CLWR
Material: stainless steel
Weight: 1.0

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
