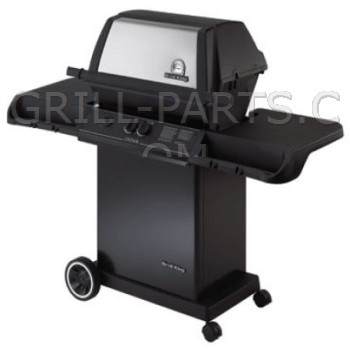

Broil King Crown 20 946-24 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 946-24. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 946-24.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish

Part Number: 10225-T407
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 12 1/4”
Material: Cast Iron
Weight: 7.20

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 946-24. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

Electronic push-button 1-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole
• Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 64” premium grill cover 67488. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 540, 590 Series grills
• Crown 20, 40 Series grills, post model
• Signet 20 Series grills
• Sovereign 20, 70, 90 grills

Dimensions:

• Side-to-Side: 64”
• Height: 45.5”
• Front-to-Back: 23”

Part Number: 67488
Weight: 6.0

Broil King 64” premium grill cover 68488. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for Broil King models:

• Baron™ 500 Series
• Signet™ Series ( Prior to 2013 )
• Signet™ 20 ( 2013 to 2015 )
• Sovereign™ 20,70,90 ( Prior to 2013 )
• Crown™ 20, 40 ( After 2012 )

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 64”
• Height: 47.5”
• Front-to-Back: 23”

Part Number: 68488
Weight: 6.0

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt

Part Number: Y-6616
Weight: 0.02

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
