Broil King 9459-34 Grill Parts

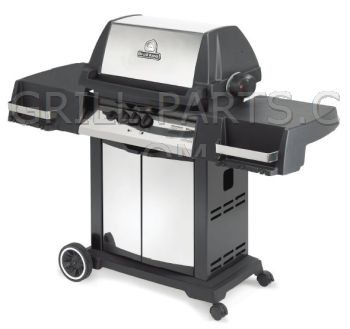

Broil King 9459-34

Highest quality replacement parts for your Broil King 9459-34 - Free USA shipping $49 or more* - No Sales Tax*

Broil King 9459-34 owners manual and diagrams

Click the small images on the right to view Broil King 9459-34 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil King 9459-34-3064005632-PartsExpS1.gif

Broil King 9459-34-3064005632-PartsLstS1.gif

Broil King 9459-34-3064005632-PartsLstS2.gif

Replacement BBQ grill parts for Broil King model: 9459-34

This page shows all of the parts we know fit model Broil King 9459-34. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 9459-34 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

9459-34 Burners

10390-T501

Click for photos

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 9459-34. This burner assembly does not include the electrodes. Includes:

One stainless steel Infinity burner
Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

S13005A

Click for photos

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 9459-34.

26 3/16” SS rotisserie burner with deflector (part# S13005)
Burner-mounted electrode, gas collector box, and 45” wire
Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

==> All Broil King Burners.

9459-34 Cooking Grids

10225-E404

Click for photos

Genuine OEM Broil King stainless steel cooking grid for Broil King model 9459-34. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

==> All Broil King Cooking Grids.

9459-34 Heat Plates

10222-T425

Click for photos

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 9459-34. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

==> All Broil King Heat Plates.

9459-34 Heat Shields

10184-R80

Click for photos

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

==> All Broil King Heat Shields.

9459-34 Igniter Components

10342-244

Click for photos

Electronic push-button 1-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole
Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

10342-T301

Click for photos

Genuine OEM Broil King collector box and electrode assembly. Includes:

burner mounted box with mounting screw
ceramic electrode and 17” wire with round connector and protective sleeve
Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

==> All Broil King Igniter Components.

9459-34 Grease Trays

S15115

Click for photos

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

==> All Broil King Grease Trays.

9459-34 Knobs and Handles

10239-390

Click for photos

Phenolic handle stand-off for left hand side.

Part Number: 10239-390
Weight: 0.1

10239-391

Click for photos

Phenolic handle stand-off for right hand side.

Part Number: 10239-391
Weight: 0.1

==> All Broil King Knobs and Handles.

9459-34 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil King Regulators and Hoses.

9459-34 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-15

Click for photos

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

==> All Broil King Wheels and Castors.

9459-34 Valves, Orifices, and Manifolds

CONTROL ASSY 44BTU 3V RB LP

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 10440-T64
Weight: 1.0

==> All Broil King Valves, Orifices, and Manifolds.

9459-34 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil King Heat indicators and Meat Thermometers.

9459-34 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

S21362

Click for photos

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

S21420

Click for photos

Push nut 3/8

Part Number: S21420
Weight: 0.1

S21255

Click for photos

Washer

Part Number: S21255
Weight: 0.01

==> All Broil King Miscellaneous Repair Parts.

9459-34 Cart Parts

10184-E78A

Click for photos

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

10184-E76

Click for photos

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

10184-E79A

Click for photos

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

10184-E77

Click for photos

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

==> All Broil King Cart Parts.

9459-34 Accessories

00030

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

WB-1

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 9459-34 Accessories.
