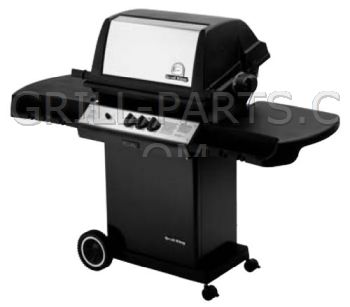

Broil King Regal XL70 960-74 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 960-74. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 960-74.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil King cast iron cooking grid, SOLD INDIVIDUALLY for Broil King model 960-74.

• Sold individually.
• Number required varies.
• Porcelain enameled cast iron, flat matte finish.

Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

Cast iron cooking grid for Broil King model 960-74. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

Cast iron cooking grid for Broil King model 960-74. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

Cast iron cooking grids for Broil King model 960-74. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 16 7/8” x 8 1/4”
• Overall dimensions: 16 7/8 x 23 3/4”

Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 960-74. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King warming rack

Part Number: 10225-T528
Dimensions: 7 3/4” x 24 3/4”
Weight: 4.5

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Hinge pin clip.

Part Number: S21233
Weight: 0.01

TANK RETAINER-PEDESTAL-NEW

Part Number: 10184-R19
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Shelf support, left.

Part Number: 10184-R581
Weight: 1.5

SHELF SUPPORT RH BLK(18”)

Part Number: 10184-R591
Weight: 1.0

Genuine OEM Broil King Side shelf, left side.

Part Number: 10711-R562
Weight: 3.10

HOW TO GRILL The Complete Illustrated Book of Barbecue Techniques. Steve Raichlen presents a full-color, step-by-step technique book that gets to the core of the grilling experience by showing and telling exactly how it's done. With more than 1,000 photographs, if features over 100 techniques and recipes, from how to set up a three-zone fire to how to grill a perfect prime rib, to grilling pizza, shellfish, vegetables, tofu, fruit, and s'mores.

Part Number: 0-7611-2014-9
Dimensions: 8” x 9 1/4”
Material: Paperback
Weight: 3.0

4 Piece Stainless Steel Tool Set With Accents Turner, tong, and fork constructed of high gade, polished stainless steel, with soft grip accents. Silicone tip tongs heat resistant to 500 degrees farenheit. High quality grill brush.

Part Number: 40070
Material: stainless steel
Weight: 2.12

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

• Ideal for searving or grilling appetizers
• Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Stainless steel jalapeno pepper tray.Cook all the heat from a jalapeño and you’re left with a fabulous taste of the southwest that leaves your taste buds singing for hours.

• Constructed of 304 stainless steel
• Measures 9-1/2” x 6-1/2”
• Holds up-to 24 jalapeño peppers
• American-Made

Part Number: JPT
Dimensions: 14 1/4” x 6”
Material: stainless steel
Weight: 0.6

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
