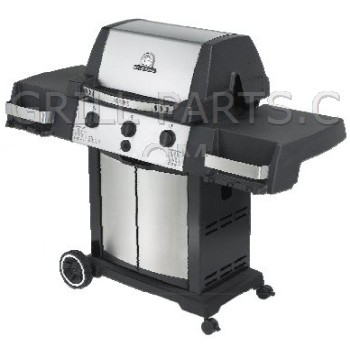

Broil King Signet 20B 9869-54 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9869-54. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Part Number: 10390-E20
Dimensions: 14 3/8” x 1 1/4”
Material: Stainless steel
Weight: 0.75

Genuine OEM Broil King cast iron cooking grid, single panel for Broil King model 9869-54.

• Sold individually.
• Number required varies.
• Porcelain treated matte finish.

Part Number: 38170121
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast Iron
Weight: 5.55

Genuine OEM Broil King stainless steel cooking grid for Broil King model 9869-54. SOLD INDIVIDUALLY. Number required varies, check your grill to be sure.

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

Genuine OEM Broil King reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9869-54.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

Porcelain steel cooking grid for Broil King model 9869-54. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51901
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: porcelain steel wire
Weight: 6.13

Genuine OEM Broil King stainless steel Flav-R-Wave for Broil King model 9869-54.

Part Number: 10222-E400
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 6 1/4”
Material: Stainless steel
Weight: 1.25

Replacement for stainless steele baffle. Fits Signet/Sovereign.

Part Number: 10222-E402-R
Dimensions: 9” x 7 7/8”
Material: stainless steel
Weight: 0.76

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E12
Weight: 0.05

Genuine OEM Broil King collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E400A
Dimensions: 20 1/2
Weight: 0.75

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 64” premium grill cover 67488. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 540, 590 Series grills
• Crown 20, 40 Series grills, post model
• Signet 20 Series grills
• Sovereign 20, 70, 90 grills

Dimensions:

• Side-to-Side: 64”
• Height: 45.5”
• Front-to-Back: 23”

Part Number: 67488
Weight: 6.0

Broil King 64” premium grill cover 68488. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for Broil King models:

• Baron™ 500 Series
• Signet™ Series ( Prior to 2013 )
• Signet™ 20 ( 2013 to 2015 )
• Sovereign™ 20,70,90 ( Prior to 2013 )
• Crown™ 20, 40 ( After 2012 )

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 64”
• Height: 47.5”
• Front-to-Back: 23”

Part Number: 68488
Weight: 6.0

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

CONTROL KNOB - BEZEL BLK

Part Number: 10472-E38
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.

Part Number: 10184-E78A
Weight: 0.36

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Weight: .25

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Weight: .25

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Vertical.Chicken Leg and Wing Rack. Stainless steel.

A convenient stainless wire wing rack, the best way to roast chicken wings and legs on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: CLWR
Material: stainless steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
