Kirkland Signature 720-0108 Grill Parts

Kirkland Signature logo



Kirkland Signature 720-0108

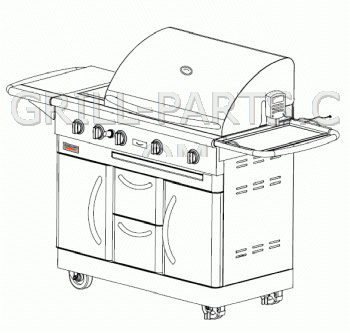

Kirkland Signature 3-Burner LP gas grill with side burner and rotisserie



Highest quality replacement parts for your Kirkland Signature 720-0108 - Free USA shipping $49 or more* - No Sales Tax*



Kirkland Signature 720-0108 owners manual and diagrams
Click the small images on the right to view Kirkland Signature 720-0108 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kirkland Signature 720-0108-32499989131-PartsExpS1.gif  Kirkland Signature 720-0108-32499989131-PartsLstS1.gif

Replacement BBQ grill parts for Kirkland Signature model: 720-0108
On this page you'll find all of the parts that fit model Kirkland Signature 720-0108. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Kirkland Signature grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kirkland Signature 720-0108 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kirkland Signature model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



720-0108 Burners

CLA-BL0229
Click for photos
304 Stainless steel Infrared rear rotisserie burner with ceramic wafer for Kirkland Signature model 720-0108. For use with both liquid propane (LP) and natural gas grills. 8,000 BTU. Orifice not included. Use old orifice or purchase our orifice part# CLA-VB0245 for LP, or part# CLA-VB0246 for natural gas applications.

Dimensions:
  • Maximum overall length, including mounting tab on one end: 17”
  • Maximum width: 3 3/8”
  • Burner box 15 3/8” x 3 3/8”
  • Mounting holes: 16 1/8” on center


Part Number: CLA-BL0229
Dimensions: 3 3/8” x 17”
Material: stainless steel and ceramic
Weight: 3.0

$103.70

Qty


==> All Kirkland Signature Burners.






720-0108 Cooking Grids

CG-69P-CI-X3
Click for photos
Cast iron cooking grids for Kirkland Signature model 720-0108. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 19 1/4” x 10 3/8”
  • Overall dimensions: 19 1/4” x 31 1/8”


Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

$159.91

Qty


CLA-GS0005
Click for photos

Premium quality heavy duty stainless steel cooking grid for Kirkland Signature model 720-0108. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

  • 304 commercial grade stainless steel
  • Large diameter 5/16” solid stainless rods
  • Dimensions: 19 1/4” x 10 1/4”
  • Made in USA.
  • Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.



Part Number: CLA-GS0005
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

$101.27

Qty


CG-69P-CI
Click for photos
Cast iron cooking grid for Kirkland Signature model 720-0108.
  • Sold inividually
  • Porcelain treated, matte finish
  • Number required varies by grill model
  • Each panel measures 19 1/4” x 10 3/8”


Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

$60.53

Qty


==> All Kirkland Signature Cooking Grids.






720-0108 Heat Plates

CLA-TS0163
Click for photos
Stainless steel Flame Tamer for Kirkland Signature model 720-0108. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0163
Dimension Front-to-Back: 17 5/16”
Dimension Side-to-Side: 8 1/4”
Material: stainless steel
Weight: 1.2

$28.80

Qty


NGSHP3
Click for photos
Stainless steel Flame Tamer for Kirkland Signature model 720-0108..

Part Number: NGSHP3
Dimension Front-to-Back: 17 5/16”
Dimension Side-to-Side: 8 1/4”
Material: stainless steel
Weight: 1.3

$28.80

Qty


CLA-TS0163-X3
Click for photos
SET OF THREE/3 PACK Stainless steel Flame Tamer for Kirkland Signature model 720-0108. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0163-X3
Dimension Front-to-Back: 17 5/16”
Dimension Side-to-Side: 8 1/4”
Material: stainless steel
Weight: 3.6

$76.64

Qty


==> All Kirkland Signature Heat Plates.






720-0108 Valves, Orifices, and Manifolds

31300
Click for photos
Orifice for flame-thrower valves. 6mm head, 4.9mm thread diameter. #72 starter hole, must be drilled to proper drill size.

Part Number: 31300
Weight: 0.01

$7.37

Qty


CLA-VB0245
Click for photos
#63 orifice for infrared burner CLA-BL0229; use on liquid propane (LP) gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0245
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

$24.42

Qty


#55 orifice for infrared burners use on natural Gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0246
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

$22.60

Qty


==> All Kirkland Signature Valves, Orifices, and Manifolds.






720-0108 Accessories

BP-7
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$9.75

Qty


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


41333
Click for photos
Stainless steel chicken roaster. Commonly called Beer Can roasters.
  • The best way to roast poultry on the grill
  • For use in barbecues and ovens
  • Dishwasher safe
  • Includes rack, rack support, and basting brush


Part Number: 41333
Material: stainless steel
Weight: 0.10

$19.85

Qty


WB-7
Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

$5.96

Qty


==> All 720-0108 Accessories.
