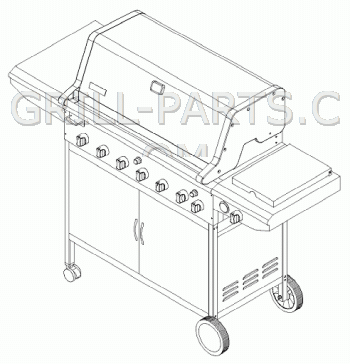

Kenmore 141.15337 Grill Parts

Cast iron burner for Kenmore model 141.15337. Fits Sears/Kenmore premium grills with rail style burners.


Part Number: CIKR (Replaces Kenmore P02001006C)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 2.0

Premium quality stainless steel cooking grids for Kenmore model 141.15337. SET OF TWO (2). Far superior to the porcelain coated steel grids it replaces.

• Made in USA
• 304 commercial grade stainless steel
• .225 diameter solid stainless rods

• Each panel measures 16 1/2” x 11 1/4”
• Overall dimensions: 16 1/2” x 22 1/2”

.

Part Number: CG-51SS-X2
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22 1/2”
Material: stainless steel
Weight: 7.0

Cast iron cooking grids for Kenmore model 141.15337. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 16 1/2” x 11 3/8”
• Overall dimensions: 16 1/2” x 22 3/4”

Part Number: CG-92P-CI-X2 (Replaces Kenmore P01615027E)
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22/4”
Material: cast iron
Weight: 20

Cooking Grid 304 Grade Stainless Steel for Kenmore model 141.15337.225” Rods.

Part Number: CG-51SS
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 1/4”
Material: stainless steel
Weight: 3.50

Cast Iron cooking grid for Kenmore model 141.15337.

Part Number: CG-92P-CI
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 3/8”
Material: cast iron
Weight: 10

Stainless steel heat plate/ Flame Tamer for Kenmore model 141.15337.

Part Number: KENHP1
Dimension Front-to-Back: 13 1/8”
Dimension Side-to-Side: 10 9/16”
Material: stainless steel
Weight: 1.0

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Kenmore model 141.15337. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0154-X3
Dimension Front-to-Back: 13 3/16”
Dimension Side-to-Side: 10 5/8”
Material: stainless steel
Weight: 5.76

Stainless steel heat plate/Flame Tamer for Kenmore model 141.15337. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0154
Dimension Front-to-Back: 13 3/16”
Dimension Side-to-Side: 10 5/8”
Material: stainless steel
Weight: 1.92

Porcelain steel Flame Tamer for Kenmore model 141.15337. Sold individually.


Part Number: 97061
Dimension Front-to-Back: 13 1/8”
Dimension Side-to-Side: 10 9/16”
Material: porcelain steel
Weight: 4.9

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Collector box and electrode assembly. fits many kenmore models usinf rail style cast iron burners (Command Flame and Command Flame II systems). The collector box is 4”.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-16B (Replaces Kenmore P02605013C)
Dimensions: 4
Weight: 0.2

Battery powered push button igniter.

• Has four (4) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B (Replaces Kenmore P02502024C)
Weight: 0.3

Battery powered push button igniter.

• Has two (2) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB2-B (Replaces Kenmore P02502012C)
Weight: 0.3

Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG2006
Weight: 0.2

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG4010
Weight: 0.2

Black control knob to fit Kenmore models.

Part Number: 03430 (Replaces Kenmore P03412331C)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Clamp-on brass gas valve with straight outlet. Includes orifice.

• D-Value: 12 o'clock
• Stem diameter: 6mm
• Stem length: 1 3/4”

Includes orifice with #72 starter hole. Must be drilled to proper drill size.

Part Number: 3700C
Dimensions: 4 15/16” x 2 1/8”
Material: brass
Weight: 0.5

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Brass orifice. 6mm x 3/4” cone shaped orifice with #64 drill size starter hole. For Electec and other clamp-on valves. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31400
Dimensions: 0 3/4” x 0 5/16”
Material: brass
Weight: 0.01

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
