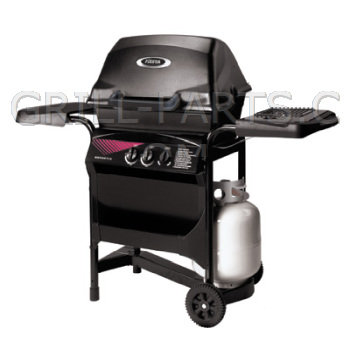

Fiesta Advantis EZT34545-B304 Grill Parts

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Cooking grid not known for Fiesta model EZT34545-B304. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Fiesta cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-41
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.1

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-4
Dimension Front-to-Back: 11 5/8”
Dimension Side-to-Side: 19”
Material: Carbon steel
Weight: 2.7

Stainless steel smart bar replacement for SP55-9 for Fiesta model EZT34545-B304.

Note: This is also a replacement for part SP24-9G, which has been discontinued. There is a difference in air hole alignment.

Part Number: CLA-TS0397
Dimension Front-to-Back: 20 3/4”
Dimension Side-to-Side: 10 1/2”
Material: stainless steel
Weight: 2.65

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

ELECTRODE CLIP-ON

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: SP9A-20
Weight: 0.4

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

HANDLE GASKET

Part Number: SP10-14
Weight: 1.0

Genuine OEM Fiesta control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2”
• Socket diameter: 5/16”
• Knob shaft: None (flat)

Part Number: SP7-7
Weight: 0.1

Side burner knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 5/16”
• Knob shaft: 1/8”

Part Number: SP9-7
Weight: 0.1

Universal warming rack. For use on grills with at least 22” inside dimension.

Part Number: AP-6A
Dimensions: 6” x 21 1/2”
Material: Chrome steel
Weight: 1.3

Genuine OEM Fiesta LP regulator with dual hoses, main control dual-valve assembly and side burner valve.

Part Number: SP148-4
Weight: 1.0

SMART ROD 345/400/450

Part Number: SM68-6
Dimensions: 12
Weight: 0.3

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.


Part Number: RR-2
Material: chrome steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
