Charbroil 463247005

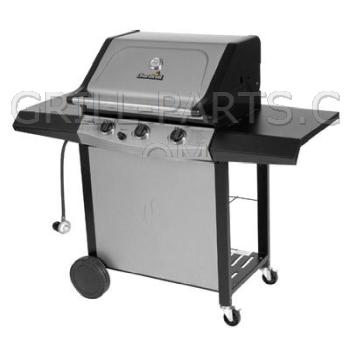

Char-Broil Terrace Series 3-Burner LP gas BBQ grill



Highest quality replacement parts for your Charbroil Terrace 463247005 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463247005 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463247005. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Charbroil Terrace 463247005
All of the parts we have for Charbroil 463247005 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463247005 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463247005 Burner Brackets and Carryovers

Universal stainless steel replacement burner mounting bracket w/crossovers (sometimes called a burner rail or burner brace, with carryover tubes). Fits 3-Burner Charbroil-made grills with certain cast iron burners. Adjustable from 25” to 27 1/2”.
Replaces the following OEM part numbers:
  • 80000652
  • 80000683
  • 80001210
  • 80001440
  • 80002834
  • 80002950
Fits most grills using our burners CIDCH, CIT & CICH.

Replaces original Charbroil universal part 80012481



Part Number: CBBR4 (Replaces Charbroil 80001178)
Material: stainless steel
Weight: 1.20

$49.89

Qty








463247005 Cooking Grids

Heavy duty stainless steel cooking grid for Charbroil model 463247005.
  • 304 commercial grade stainless
  • Solid 5/16” stainless rods
  • Sold individually
  • Made in USA.


Part Number: CLA52932S
Dimension Front-to-Back: 16 5/8”
Dimension Side-to-Side: 12 1/4”
Material: solid 304 stainless steel rod
Weight: 6.4

$54.77

Qty


Cast iron cooking grid for Charbroil model 463247005. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$37.52

Qty


Cast iron cooking grid for Charbroil model 463247005. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61

Qty


cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 463247005.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.52

Qty


Porcelain steel cooking grids for Charbroil model 463247005. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 52932 (Replaces Charbroil 80000854)
Dimension Front-to-Back: 16 5/8”
Dimension Side-to-Side: 24 1/2”
Material: porcelain steel wire
Weight: 12.11

$100.62

Qty


Cast iron cooking grids for Charbroil model 463247005. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.25

Qty








463247005 Heat Plates

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Charbroil model 463247005. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0143-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 2.4

$49.83

Qty


Stainless steel heat plate/Flame Tamer for Charbroil model 463247005.


Part Number: CBHP4 (Replaces Charbroil 80000855)
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 4 5/16”
Material: stainless steel
Weight: 0.7

$33.80
SALE  $18.13
Qty








463247005 Knobs and Handles

Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.55

Qty


Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80000035)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84

Qty








463247005 Heat indicators and Meat Thermometers

Round temperature gauge. Fits MHP Grills JNR, WNK, TJK, GJK, WRG, TRG.
  • 2 1/2” diameter.
  • Single prob
  • Requires 3/8” mounting hole


    Part Number: GG-TG4 (Replaces Charbroil 80000096)
    Weight: 0.15

$21.23

Qty


Rectangular heat indicator for old style MHP grills that has two pegs and a center probe to mount through the casting. It was used on older JNR and WNK grills. We are not sure when MHP changed to the newer heat indicator GG-TG4 that has one larger peg to mount. The GG-TG3 needs two small holes for mounting and one hole in the center for the probe.

Part Number: GG-TG3
Dimensions: 2 5/8” x 2 1/4”
Weight: 0.15

$11.37

Qty








463247005 Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty
