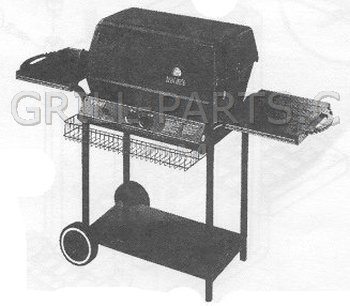

Broil-Mate 453 Grill Parts

Highest quality replacement parts for your Broil-Mate 453 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 453 owners manual and diagrams

Click the small images on the right to view Broil-Mate 453 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement gas grill parts for Broil-Mate model: 453

All of the parts we have for Broil-Mate 453 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 453 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

453 Burners

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 453. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

==> All Broil-Mate Burners.

453 Cooking Grids

Click for photos

Premium grade solid stainless steel grid with 1/4” rods for Broil-Mate model 453. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

==> All Broil-Mate Cooking Grids.

453 Rock/Briquette Grates

Click for photos

carbon steel rock grate

Part Number: 90401
Dimension Front-to-Back: 11 5/32”
Dimension Side-to-Side: 21 13/16”
Material: steel wire
Weight: 3.7

==> All Broil-Mate Rock/Briquette Grates.

453 Heat Plates

Heat Plate/ Flame Tamer not known for Broil-Mate model 453. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Broil-Mate Heat Plates.

453 Igniter Components

Click for photos

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-21
Weight: 0.05

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

453 Knobs and Handles

Click for photos

Genuine OEM Broil-Mate control knob.

Off position D-Value: 6 o'clock
Knob diameter: 1 5/8”
Socket diameter: 5/16”
Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

==> All Broil-Mate Knobs and Handles.

453 Regulators and Hoses

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

==> All Broil-Mate Regulators and Hoses.

453 Warming Racks

Click for photos

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

==> All Broil-Mate Warming Racks.

453 Heat indicators and Meat Thermometers

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil-Mate Heat indicators and Meat Thermometers.

453 Accessories

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 453 Accessories.
