Broil-Mate 1386-4 Grill Parts

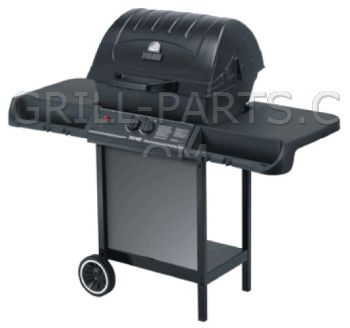

Broil-Mate 1386-4

Highest quality replacement parts for your Broil-Mate 1386-4 - Free USA shipping $49 or more* - No Sales Tax*

Broil-Mate 1386-4 owners manual and diagrams

Click the small images on the right to view Broil-Mate 1386-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil-Mate 1386-4-385133633-PartsExpS1.jpg

Broil-Mate 1386-4-385133633-PartsLstS1.gif

Broil-Mate 1386-4-385133633-PartsLstS2.gif

Replacement grill parts to fit Broil-Mate model: 1386-4

This page shows all of the parts we know fit model Broil-Mate 1386-4. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Broil-Mate grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil-Mate 1386-4 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil-Mate model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

1386-4 Burners

S10077

Click for photos

Genuine OEM Broil-Mate stainless steel burner and venturi assembly for Broil-Mate model 1386-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10077
Dimensions: 8” x 16”
Material: Stainless steel
Weight: 2.5

==> All Broil-Mate Burners.

1386-4 Cooking Grids

10225-T341

Click for photos

Genuine OEM Broil-Mate cooking grid SOLD INDIVIDUALLY for Broil-Mate model 1386-4.

Sold individually
Number required varies, check your grill
Porcelain enameled steel, glossy finish

Part Number: 10225-T341
Dimension Front-to-Back: 14 7/8”
Dimension Side-to-Side: 11”
Material: Porcelain steel
Weight: 2.15

==> All Broil-Mate Cooking Grids.

1386-4 Heat Plates

10222-T325

Click for photos

Genuine OEM Broil-Mate stainless steel Flav-R-Wave SS heat plate for Broil-Mate model 1386-4.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

==> All Broil-Mate Heat Plates.

1386-4 Igniter Components

10342-21

Click for photos

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-21
Weight: 0.05

S15500

Click for photos

Genuine OEM Broil-Mate collector box and electrode assembly. Includes

burner mounted collector box (clip on)
ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

==> All Broil-Mate Igniter Components.

1386-4 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil-Mate Grease Trays.

1386-4 Knobs and Handles

30230228

Click for photos

Black lid handle. Fits older GrillPro and other models which use a half-handle that is 10 3/4” long. Requires 8 3/4” mounting holes, center to center.

Part Number: 30230228
Weight: 0.45

==> All Broil-Mate Knobs and Handles.

1386-4 Regulators and Hoses

HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

10111-K45

Click for photos

Genuine OEM Broil-Mate NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil-Mate Regulators and Hoses.

1386-4 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil-Mate 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10240-13

Click for photos

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

==> All Broil-Mate Wheels and Castors.

1386-4 Warming Racks

38110172

Click for photos

Genuine OEM Broil-Mate warming rack.

Front-to-back of rack itself: 11 7/8”
Side-to-side of rack itself: 21 5/8”
Length of rear mounting rod: 24 1/2”
Length of front swing-away rod: 23 5/8”

Part Number: 38110172
Dimensions: 24 1/2
Weight: 3.8

==> All Broil-Mate Warming Racks.

1386-4 Valves, Orifices, and Manifolds

10440-E36

Click for photos

Genuine OEM Broil-Mate LP twin valve assembly. Includes orifices. (CONTROL ASSEMBLY 44M 2V LP T35)

Part Number: 10440-E36
Material: brass/aluminum
Weight: 0.7

==> All Broil-Mate Valves, Orifices, and Manifolds.

1386-4 Heat indicators and Meat Thermometers

10571-5

Click for photos

Genuine OEM Broil-Mate Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

==> All Broil-Mate Heat indicators and Meat Thermometers.

1386-4 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Y-12665

Click for photos

Leg plug extension.

Part Number: Y-12665
Weight: 0.1

S21255

Click for photos

Washer

Part Number: S21255
Weight: 0.01

==> All Broil-Mate Miscellaneous Repair Parts.

1386-4 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil-Mate Shelves.

1386-4 Accessories

BP-6

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

40259

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

00030

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

50426

Click for photos

Aluminum foil grilling trays. Package of three.

Heavy duty aluminum foil
Re-usable
Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

==> All 1386-4 Accessories.
