Amana AM27LP Grill Parts

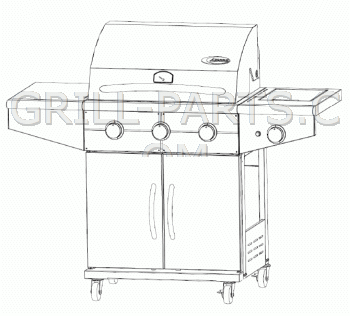

Amana AM27LP

Highest quality replacement parts for your Amana AM27LP - Free USA shipping $49 or more* - No Sales Tax*

Amana AM27LP owners manual and diagrams

Click the small images on the right to view Amana AM27LP exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Amana AM27LP-377422233-PartsExpS1.gif

Amana AM27LP-377422233-PartsExpS2.gif

Amana AM27LP-377422233-PartsExpS3.gif

Replacement grill parts for the Amana model: AM27LP

All of the parts we have for Amana AM27LP are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Amana grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Amana AM27LP BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Amana model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

AM27LP Burners

FCTG2608013 / AMT1

Click for photos

Stainless steel burner for Amana model AM27LP. Sold individually, number required varies.

Part Number: AMT1 (Replaces Amana FCTG2608013)
Dimensions: 17 1/8” x 1”
Material: stainless steel
Weight: 0.6

==> All Amana Burners.

AM27LP Cooking Grids

FCTG2708007 / 62673

Click for photos

Cast iron cooking grids for Amana model AM27LP. Porcelain treated, flat matte finish. Sold as a set of three (3).
This part is currently out of stock, but more are already on the way and expected to arrive late June

Part Number: 62673 (Replaces Amana FCTG2708007)
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 23 1/4”
Material: matte cast iron
Weight: 10.0

==> All Amana Cooking Grids.

AM27LP Heat Plates

CLA-TS0152-X3

Click for photos

SET OF THREE/3 PACK Flavor Grid, stainless steel for Amana model AM27LP. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0152-X3
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 1/2”
Material: stainless steel
Weight: 3.6

CLA-TS0152-X4

Click for photos

SET OF FOUR/4 PACK Flavor Grid, stainless steel for Amana model AM27LP. Made in USA.

NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0152-X4
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 1/2”
Material: stainless steel
Weight: 4.8

FCTG2608012 / AMHP1

Click for photos

Stainless Flavor Grid (heat plate/Flame Tamer) for Amana model AM27LP. Sold individually, number required varies.

Part Number: AMHP1 (Replaces Amana FCTG2608012)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 3 7/16”
Material: stainless steel
Weight: 1.0

==> All Amana Heat Plates.

AM27LP Igniter Components

IG-30B

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

IG-48B

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

06730

Click for photos

Ceramic electrode and 40” wire with female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 06730
Material: ceramic
Weight: 0.1

TS-IG4010

Click for photos

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG4010
Weight: 0.2

FCTG3007029 / IGEIB4-B

Click for photos

Battery powered push button igniter.

Has four (4) spade type male connectors.
Uses 1 AAA battery (not supplied)
Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B (Replaces Amana FCTG3007029)
Weight: 0.3

==> All Amana Igniter Components.

AM27LP Heat indicators and Meat Thermometers

FCCS0007030 / 00013

Click for photos

heat indicator

Part Number: 00013 (Replaces Amana FCCS0007030)
Dimensions: 3 3/8” x 2 1/16”
Weight: 0.2

==> All Amana Heat indicators and Meat Thermometers.

AM27LP Accessories

00150

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

40269

Click for photos

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

BRGG

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

RR-2

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

==> All AM27LP Accessories.
