Uniflame GBC820WC-C Grill Parts

Uniflame logo

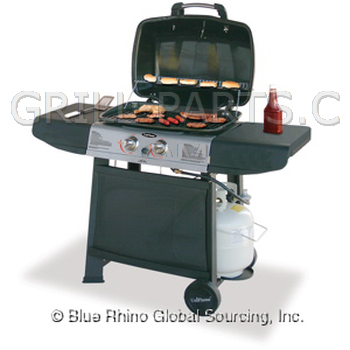

Uniflame GBC820WC-C

Uniflame GBC820WC-C 2-Burner LP gas grill



Highest quality replacement parts for your Uniflame GBC820WC-C - Free USA shipping $49 or more* - No Sales Tax*



Uniflame GBC820WC-C owners manual and diagrams
Click the small images on the right to view Uniflame GBC820WC-C exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Uniflame GBC820WC-C-4E651499555839-PartsExpS1.gif

Replacement grill parts for Uniflame model: GBC820WC-C
This page shows all of the parts we know fit model Uniflame GBC820WC-C. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Uniflame grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Uniflame GBC820WC-C BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Uniflame model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



GBC820WC-C Burners

182R1
Stainless steel burner with electrode mounting bracket for Uniflame model GBC820WC-C. Includes burner mounting screws.

Part Number: 182R1
Dimensions: 13 3/8” x 5 11/16”
Material: stainless steel
Weight: 0.8

$35.18

Qty


==> All Uniflame Burners.






GBC820WC-C Cooking Grids

55-07-310 / 58201
Click for photos
Porcelain steel cooking grid for Uniflame model GBC820WC-C. Porcelain enameled, glossy finish. Sold individually.

Part Number: 58201 (Replaces Uniflame 55-07-310)
Dimension Front-to-Back: 15 9/16”
Dimension Side-to-Side: 25”
Material: porcelain steel bar
Weight: 4.0

$61.07

Qty


==> All Uniflame Cooking Grids.






GBC820WC-C Heat Plates

55-07-319 / UFHP1
Click for photos
Porcelain steel Heat Plate for Uniflame model GBC820WC-C.

Part Number: UFHP1 (Replaces Uniflame 55-07-319)
Dimension Front-to-Back: 11 3/4”
Dimension Side-to-Side: 21 3/4”
Material: Porcelain steel
Weight: 2.2

$45.83

Qty


UFHP1-SS
Click for photos
This stainless steel version of UFHP1 Heat Plate replaces the original porcelain steel plate for Uniflame model GBC820WC-C.

Part Number: UFHP1-SS
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 25”
Material: stainless steel
Weight: 2.5

$40.58

Qty


==> All Uniflame Heat Plates.






GBC820WC-C Igniter Components

TS-IG3007
Click for photos
Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG3007
Weight: 0.2

$35.57

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.48

Qty


IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B
Weight: 0.3

$34.08

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


04820
Click for photos
Burner mounted electrode. Mounts to flange on underside of burner.
  • Ceramic insulator
  • Mounting bracket with nut and bolt
  • 8” wire with female spade connector

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04820
Material: ceramic
Weight: 0.1

$7.13

Qty


55-07-321 / 03333
Click for photos
Universal three-outlet battery powered push button ignitor.
  • 1.5 volt
  • Has three (3) terminals (male spade connector)
  • Uses a single AA battery (not included)
  • 03610 and 03620 wires are commonly used with this igniter (not included)
  • Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03333 (Replaces Uniflame 55-07-321)
Dimensions: 2 9/16” x 2”
Weight: 0.5

$35.57

Qty


==> All Uniflame Igniter Components.






GBC820WC-C Heat indicators and Meat Thermometers

55-07-358 / 072-6800-0
Click for photos
Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Uniflame 55-07-358)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

$9.95

Qty


==> All Uniflame Heat indicators and Meat Thermometers.






GBC820WC-C Accessories

00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All GBC820WC-C Accessories.
