Uniflame Deep Cobalt GBC1117W Grill Parts

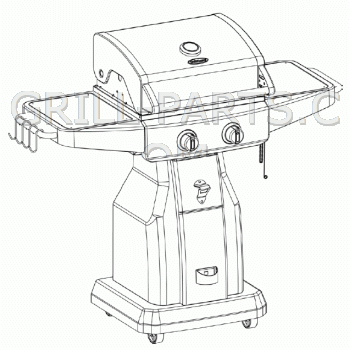

Uniflame 20,000 BTU 2 Burner Patio Gas Grill

Highest quality replacement parts for your Uniflame Deep Cobalt GBC1117W - Free USA shipping $49 or more* - No Sales Tax*

Uniflame GBC1117W owners manual and diagrams

Click the small images on the right to view Uniflame GBC1117W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Uniflame GBC1117W-4E658882231-PartsExpS1.gif

Uniflame GBC1117W-4E658882231-PartsLstS1.gif

Replacement grill parts for the Uniflame Deep Cobalt GBC1117W

On this page you'll find all of the parts that fit model Uniflame GBC1117W. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Uniflame grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Uniflame GBC1117W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Uniflame model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1117W Burners

Click for photos

Adjustable universal front-to-back tube burner with top-ported flame holes for Uniflame model GBC1117W. This burner may not work with existing ignition electrodes and back burner cross-overs.

Variable length burner adjusts from 13 1/2” to 17 1/2”.
Includes extra hardware and mounting brackets to accommodate almost all grills.
Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.

Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

==> All Uniflame Burners.

GBC1117W Cooking Grids

Click for photos

Chrome steel cooking grid for Uniflame model GBC1117W. Sold individually.

Part Number: 40711 (Replaces Uniflame 55-11-366)
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 17 3/16”
Material: chrome steel wire
Weight: 3.0

==> All Uniflame Cooking Grids.

GBC1117W Heat Plates

Click for photos

Porcelain steel Heat Plate for Uniflame model GBC1117W. Sold individually.

Part Number: 91571 (Replaces Uniflame 55-11-367)
Dimension Front-to-Back: 12 7/8”
Dimension Side-to-Side: 3 11/16”
Material: porcelain steel
Weight: 0.8

==> All Uniflame Heat Plates.

GBC1117W Igniter Components

Click for photos

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All Uniflame Igniter Components.

GBC1117W Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
3” diameter
Requires 3/8” mounting hole

Part Number: 00016 (Replaces Uniflame 55-10-583)
Dimensions: 3” x 3”
Weight: 0.2

==> All Uniflame Heat indicators and Meat Thermometers.

GBC1117W Accessories

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All GBC1117W Accessories.
