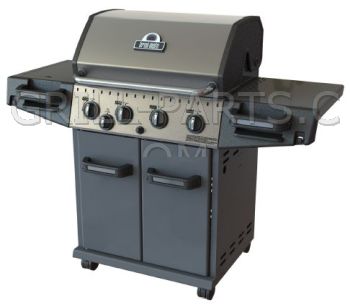

Sterling 5023-64



Highest quality replacement parts for your Sterling 5023-64 - Free USA shipping $49 or more* - No Sales Tax*



Sterling 5023-64 owners manual and diagrams
Click the small images on the right to view Sterling 5023-64 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Sterling 5023-64-3494553632-PartsExpS1.gif  Sterling 5023-64-3494553632-PartsExpS2.gif  Sterling 5023-64-3494553632-PartsLstS1.gif

Replacement grill parts to fit Sterling model: 5023-64
On this page you'll find all of the parts that fit model Sterling 5023-64. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Sterling grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Sterling 5023-64 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Sterling model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



5023-64 Burners

52924-144
Click for photos
Genuine OEM Sterling stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Sterling model 5023-64. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

$20.19

Qty


10390-E10
Click for photos
Genuine OEM Sterling Side Burner for Sterling model 5023-64. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


23000-251
Click for photos
COVER SIDE BURNER BLACK for Sterling model 5023-64.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

$10.97

Qty


SIDE BURNER GRID BLK 330/440/550 for Sterling model 5023-64. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

$18.40

Qty


==> All Sterling Burners.






5023-64 Cooking Grids

52007-181
Click for photos
Genuine OEM Sterling cooking grid for Sterling model 5023-64. Porcelain treated, matte finish. (Sold individually; number required varies, check your grill.)

Part Number: 52007-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 6 5/16”
Material: cast iron
Weight: 3.10

$33.22

Qty


==> All Sterling Cooking Grids.






5023-64 Heat Plates

52209-404
Click for photos
Genuine OEM Sterling stainless steel Flav-R-Wave for Sterling model 5023-64.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

$21.94

Qty


==> All Sterling Heat Plates.






5023-64 Igniter Components

52225-014A
Click for photos
Genuine stainless steel two piece collector box assembly. Consists of both upper and lower pieces.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 52225-014A
Dimensions: 23
Material: stainless steel
Weight: 1.0

$28.26

Qty


10342-246
Click for photos
Genuine OEM Sterling electronic push-button 3-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-246
Weight: 0.6

$18.49

Qty


10342-E13
Click for photos
Genuine OEM Sterling electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E13
Weight: 0.05

$3.81

Qty


10342-T18
Click for photos
Genuine OEM Sterling 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

$4.42

Qty


==> All Sterling Igniter Components.






5023-64 Grease Trays

27249-904
Click for photos
Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

$7.60

Qty


22009-901
Click for photos
Genuine OEM Sterling Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

$15.12

Qty


==> All Sterling Grease Trays.






5023-64 Knobs and Handles

24005-12A
Click for photos
LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

$25.87

Qty


10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


10472-K231
Click for photos
CONTROL KNOB SMALL W/BA STRIP.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 1 7/8”
  • Socket diameter: 5/16”
  • Knob shaft: 1/2”


Part Number: 10472-K231
Weight: 0.1

$5.15

Qty


21475-138
Click for photos
DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

$6.73

Qty


==> All Sterling Knobs and Handles.






5023-64 Wheels and Castors

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

$18.51

Qty


10892-23
Click for photos
Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

$6.87

Qty


==> All Sterling Wheels and Castors.






5023-64 Warming Racks

52005-991
Click for photos
WARMING RACK 440 PORC (back support rod 25 5/8” and front support rod 26 3/16” warming rack 7 3/8” x 25”).

Part Number: 52005-991
Dimensions: 25 5/8
Weight: 3.3

$35.18

Qty


==> All Sterling Warming Racks.






5023-64 Heat indicators and Meat Thermometers

10571-5
Click for photos
Genuine OEM Sterling Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

$15.12

Qty


==> All Sterling Heat indicators and Meat Thermometers.






5023-64 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Sterling Miscellaneous Repair Parts.






5023-64 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


Y-11231
Click for photos
LID BUMPER

Part Number: Y-11231
Weight: 0.01

$1.08

Qty


==> All Sterling Hardware.






5023-64 Accessories

BP-6
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75

Qty


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64

Qty


==> All 5023-64 Accessories.
