RevoAce GBC1748WRS Grill Parts

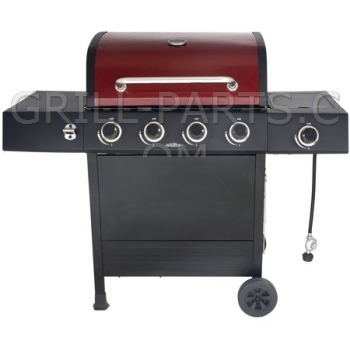

RevoAce 4-Burner Gas Grill with Side Burner, Red Sedona, Walmart # 564153799

Highest quality replacement parts for your RevoAce GBC1748WRS - Free USA shipping $49 or more* - No Sales Tax*

RevoAce GBC1748WRS owners manual and diagrams

Click the small images on the right to view RevoAce GBC1748WRS exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce GBC1748WRS-4E658261111839-PartsExpS1.jpg

Replacement grill parts to fit RevoAce model: GBC1748WRS

This page shows all of the parts we know fit model RevoAce GBC1748WRS. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce GBC1748WRS BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1748WRS Burners

Click for photos

stainless steel burner for RevoAce model GBC1748WRS.

Part Number: 19921 (Replaces RevoAce G1646-050)
Dimensions: 14 9/16” x 0 5/8”
Material: stainless steel
Weight: 0.4

==> All RevoAce Burners.

GBC1748WRS Cooking Grids

Click for photos

Cast Iron Cooking Grids for RevoAce model GBC1748WRS. Porcelain treated, matte finish. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces RevoAce G1646-030)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 14.0

Click for photos

Cast Iron Cooking Grid for RevoAce model GBC1748WRS. Porcelain treated, matte finish. SOLD INDIVIDUALLY.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

Click for photos

Channel formed U-shaped porcelain steel cooking grids for RevoAce model GBC1748WRS. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

==> All RevoAce Cooking Grids.

GBC1748WRS Heat Plates

Click for photos

porcelain steel Heat Plate for RevoAce model GBC1748WRS.

Part Number: 91641 (Replaces RevoAce B0212-005)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 1 7/8”
Material: porcelain steel
Weight: 0.7

==> All RevoAce Heat Plates.

GBC1748WRS Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

GBC1748WRS Rotisserie components

Click for photos

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

==> All RevoAce Rotisserie components.

GBC1748WRS Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces RevoAce B0104-JRE)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

GBC1748WRS Accessories

Click for photos

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Click for photos

Extra long stainless steel fork with ergonomically correct handles. 20 1/2” long.

Part Number: ITF-2
Dimensions: 20 1/2
Material: stainless steel
Weight: 0.3

Click for photos

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Click for photos

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

==> All GBC1748WRS Accessories.
