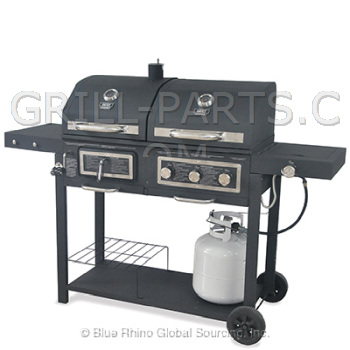

RevoAce GBC1690W Grill Parts

Highest quality replacement parts for your RevoAce GBC1690W - Free USA shipping $49 or more* - No Sales Tax*

RevoAce GBC1690W owners manual and diagrams

Click the small images on the right to view RevoAce GBC1690W exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

RevoAce GBC1690W-4E658309931-PartsExpS1.gif

Replacement grill parts for RevoAce model: GBC1690W

All of the parts we have for RevoAce GBC1690W are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for RevoAce grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct RevoAce GBC1690W BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your RevoAce model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GBC1690W Burners

Click for photos

stainless steel burner for RevoAce model GBC1690W.

Part Number: 19951 (Replaces RevoAce 55-24-205)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All RevoAce Burners.

GBC1690W Cooking Grids

Click for photos

Cast iron cooking grid for RevoAce model GBC1690W. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-59P-CI (Replaces RevoAce 55-24-206)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 9 1/4”
Material: cast iron
Weight: 5.45

==> All RevoAce Cooking Grids.

GBC1690W Heat Plates

Click for photos

Uniflame Heat Plate for RevoAce model GBC1690W.

Part Number: UFHP4 (Replaces RevoAce 55-24-198)
Dimension Front-to-Back: 14 3/16”
Dimension Side-to-Side: 3 13/16”
Material: stainless steel
Weight: 0.60

==> All RevoAce Heat Plates.

GBC1690W Igniter Components

Click for photos

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

==> All RevoAce Igniter Components.

GBC1690W Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
3” diameter
Requires 3/8” mounting hole

Part Number: 00016 (Replaces RevoAce 55-24-461)
Dimensions: 3” x 3”
Weight: 0.2

==> All RevoAce Heat indicators and Meat Thermometers.

GBC1690W Accessories

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All GBC1690W Accessories.
