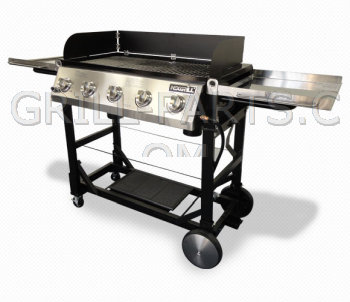

Nexgrill 720-0744A Grill Parts

Highest quality replacement parts for your Nexgrill 720-0744A - Free USA shipping $49 or more* - No Sales Tax*

Nexgrill 720-0744A owners manual and diagrams

Diagrams & owners manual not available for grill model# 720-0744A. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Nexgrill model: 720-0744A

This page shows all of the parts we know fit model Nexgrill 720-0744A. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Nexgrill grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Nexgrill 720-0744A BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Nexgrill model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

720-0744A Burners

Click for photos

Adjustable universal front-to-back tube burner with top-ported flame holes for Nexgrill model 720-0744A. This burner may not work with existing ignition electrodes and back burner cross-overs.

Variable length burner adjusts from 13 1/2” to 17 1/2”.
Includes extra hardware and mounting brackets to accommodate almost all grills.
Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.

Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

==> All Nexgrill Burners.

720-0744A Cooking Grids

Click for photos

Cast iron cooking grids for Nexgrill model 720-0744A. SET OF THREE (3) panels.

Porcelain treated, matte finish
Each panel measures 17 5/8” x 10 3/8”
Overall dimensions: 17 5/8 x 31 1/8”

Part Number: CG-67P-CI-X3
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 20.85

Click for photos

Cast iron cooking grid for Nexgrill model 720-0744A. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-67P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 6.95

==> All Nexgrill Cooking Grids.

720-0744A Heat Plates

Click for photos

Stainless steel heat plate/ Flame Tamer for Nexgrill model 720-0744A.

Part Number: NGSAMHP1
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 4 7/8”
Material: stainless steel
Weight: 0.6

Click for photos

Stainless steel Flame Tamer for Nexgrill model 720-0744A.

Part Number: NGKHP1 (Replaces Nexgrill 04004633A0)
Dimension Front-to-Back: 15 1/8”
Dimension Side-to-Side: 4 3/16”
Material: stainless steel
Weight: 1.0

Click for photos

SET OF FOUR/4 PACK Stainless steel Flame Tamer for Nexgrill model 720-0744A. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0216-X4
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 4 7/8”
Material: stainless steel
Weight: 3.2

==> All Nexgrill Heat Plates.

720-0744A Igniter Components

Click for photos

Electrode and wire. Includes mounting bolt and nut. Wire connects to spark generator with flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center). Includes an extra 16” connector wire with flat female spade end and male spade end for some applications (not shown in photo).

Part Number: 00162
Material: ceramic
Weight: 0.1

Click for photos

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 07370
Dimensions: 4 3/16” x 0 3/4”
Material: ceramic
Weight: 0.1

==> All Nexgrill Igniter Components.

720-0744A Accessories

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 720-0744A Accessories.
