Member's Mark M3905ALP Grill Parts

Member's Mark logo



Member's Mark M3905ALP

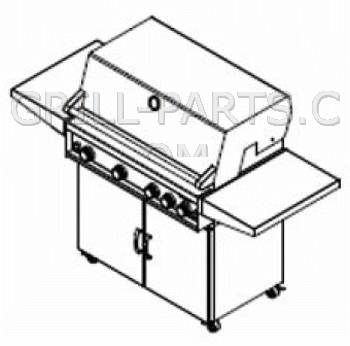

Member's Mark 3-Burner Stainless LP gas grill with infrared searing burner



Highest quality replacement parts for your Member's Mark M3905ALP - Free USA shipping $49 or more* - No Sales Tax*



Member's Mark M3905ALP owners manual and diagrams
Click the small images on the right to view Member's Mark M3905ALP exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Members Mark M3905ALP-4D509477731-PartsLstS1.gif  Members Mark M3905ALP-4D509477731-PartsLstS2.gif

Replacement gas grill parts for Member's Mark model: M3905ALP
This page shows all of the parts we know fit model Member's Mark M3905ALP. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Member's Mark grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Member's Mark M3905ALP BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Member's Mark model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



M3905ALP Burners

P02008004A-R-X3 Main Burners for Member's Mark model M3905ALP. SET OF THREE (3). Stainless steel center-fed U burners.

Fits Sam's Club Member's Mark LP models:

  • M3905ALP
  • M5205ALP

Replaces original Member's Mark (Grand Hall) part # P02008004A.
May fit other models



Part Number: P02008004A-R-X3 (Replaces Member's Mark P02008004A-X3)
Dimensions: 16 1/8” x 5 1/8”
Material: stainless steel
Weight: 6.0

$246.39

Qty


P02008004A-R Main Burner for Member's Mark model M3905ALP. Stainless steel center-fed U burner.

Fits Sam's Club Member's Mark LP models:

  • M3905ALP
  • M5205ALP

May fit other models.

Replaces original Member's Mark (Grand Hall) part # P02008004A.

Available in an economical 3-burnet set.

Part Number: P02008004A-R (Replaces Member's Mark P02008004A)
Dimensions: 16 1/8” x 5 1/8”
Material: stainless steel
Weight: 2.0

$87.73

Qty








M3905ALP Cooking Grids

Premium quality heavy duty stainless steel cooking grid for Member's Mark model M3905ALP. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

  • 304 commercial grade stainless steel
  • Large diameter 5/16” solid stainless rods
  • Made in USA.
  • Sold individually.

See part CLA-GS0004-X2 for a more economical 2-pack.



Part Number: CLA-GS0004 (Replaces Member's Mark P01604009B)
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12”
Material: stainless steel
Weight: 8.5

$91.34

Qty


Aftermarket reversible heavy cast iron cooking grid for Member's Mark model M3905ALP.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain treated, flat matte finish
  • Pointed side is designed for perfect sear marks
  • Grooved side captures juices for continous basting

Fits: Broil King 500/625/750 series grills.

NOTE: This aftermarket part, made of the same materials as the original, is a perfect replacement for original part# 22005-281 but at a much lower cost.

Part Number: 22005-281-R
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 6 1/16”
Material: Cast iron
Weight: 5.0

$40.70

Qty


Porcelain steel cooking grid for Member's Mark model M3905ALP. Porcelain enameled, glossy finish. Sold individually.

Part Number: 51631
Dimension Front-to-Back: 19”
Dimension Side-to-Side: 6 5/16”
Material: porcelain steel wire
Weight: 4.0

$56.96

Qty


Cast iron cooking grid for Member's Mark model M3905ALP. Porcelain treated, flat matte finish. Sold individually, number required varies, check your grill.

Part Number: 67845-1PC
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 6 1/16”
Material: matte cast iron
Weight: 5.5

$40.70

Qty


Cast iron cooking grids, porcelain treated, flat matte finish for Member's Mark model M3905ALP.

Part Number: 67845
Dimension Front-to-Back: 19 3/16”
Dimension Side-to-Side: 30 5/16”
Material: matte cast iron
Weight: 27.2

$169.00

Qty


69501
Cast iron cooking grid for Member's Mark model M3905ALP. Porcelain treated, flat matte finish. Sold individually.

Part Number: 69501
Dimension Front-to-Back: 19”
Dimension Side-to-Side: 6 1/8”
Material: cast iron
Weight: 4.85

$53.94

Qty








M3905ALP Heat Plates

Ceramic Savor Plate for Member's Mark model M3905ALP. Measures 7 1/16” x 4 3/4”. Box of 4.

Note: This part is used in racks P01717003E, and P01717002E.

Fits models:
  • M3905ALP
  • M3905ANG
  • M5205ALP
  • M5205ANG
  • And others



Part Number: P01804006A-R (Replaces Member's Mark P01804006A)
Dimension Front-to-Back: 7 1/16”
Dimension Side-to-Side: 4 3/4”
Material: ceramic
Weight: 4.0

$45.00
SALE  $34.99
Qty


Savor Plate Rack for Member's Mark model M3905ALP. Heavy duty, 304 premium grade stainless steel with 5/16” rods. Each rack holds three (3) P01804006A-R ceramic flame tamers (sold separately).

NOTE: This is an aftermarket part made to replace original part number P01717003E, which is no longer available.

Fits models:

  • M3905ALP
  • M3905ANG
  • and others



Part Number: P01717003E-R (Replaces Member's Mark P01717003E)
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 9”
Material: nickel plated steel
Weight: 1.0

$34.92

Qty








M3905ALP Igniter Components

Stainless steel collector box and ceramic electrode with round connector. Includes mounting nuts and washer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-17B (Replaces Member's Mark P02609001B)
Weight: 0.11

$11.34

Qty


Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Member's Mark P02502134C)
Weight: 0.3

$34.08

Qty


Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B (Replaces Member's Mark P02502192C)
Weight: 0.3

$34.11

Qty


Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$19.40

Qty


Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.48

Qty


46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-7B
Weight: 0.02

$4.75

Qty


16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35

Qty








M3905ALP Grease Trays

Stainless steel grease tray. Hardware included, use old handle. Made in USA

Part Number: CLA-DS0122 (Replaces Member's Mark P02705165B)
Dimensions: 15 3/4” x 32 7/8”
Material: stainless steel
Weight: 4.55

$83.38

Qty


Stainless steel lower heat shield for grease tray. Made in USA.

Part Number: CLA-MS0124 (Replaces Member's Mark P06903028A)
Dimensions: 10 9/16” x 28 3/4”
Material: stainless steel
Weight: 2.70

$51.29

Qty


Upper heat shield for grease tray with heat shield extension attached (two pieces assembled). Made in USA.

Part Number: CLA-MS0123 (Replaces Member's Mark P06903029A)
Dimensions: 10 1/4” x 27 9/16”
Material: stainless steel
Weight: 4.30

$88.69

Qty








M3905ALP Heat indicators and Meat Thermometers

Universal four piece mini thermometer set. Great gift idea.
  • 2 calibrated for steak, and 2 for chicken
  • Mini thermometers for testing doneness of individual cuts of meat
  • Silicone bezels for easy removal when hot
  • Always use caution when handling hot objects


Part Number: 11381
Weight: .25

$16.45

Qty








M3905ALP Accessories

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$10.42

Qty


Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90

Qty


Bamboo Appetizer 7” Skewers - pack of eight. Limited to supplies on hand.


Part Number: 11040
Dimensions: 7
Weight: 0.4

CLEARANCE  $1.45
Qty


Non-Stick Aluminum Griddle. 19 in. x 10.75 in. Non-stick cast aluminum double sided griddle. One flat side for frying, and a ridge side for grilling.

Part Number: 91652
Dimensions: 19 1/2” x 10 3/4”
Material: aluminum
Weight: 3.0

$55.68

Qty


18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$13.66

Qty






BBQ Part Categories



























Member's Mark model M3905ALP - Tuesday, Oct 7 2025
