Fiesta GD45067 Grill Parts

Fiesta logo



Fiesta GD45067



Highest quality replacement parts for your Fiesta GD45067 - Free USA shipping $49 or more* - No Sales Tax*

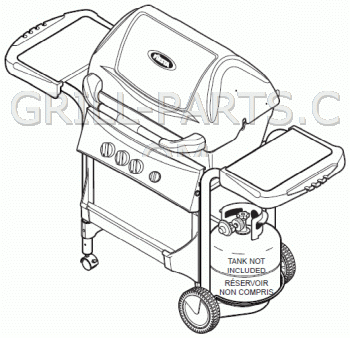

Fiesta GD45067 owners manual and diagrams
Click the small images on the right to view Fiesta GD45067 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Fiesta GD45067-4EB6493232-PartsExpS1.gif  Fiesta GD45067-4EB6493232-PartsLstS1.gif

Replacement grill parts for Fiesta model: GD45067
This page shows all of the parts we know fit model Fiesta GD45067. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Fiesta grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Fiesta GD45067 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



GD45067 Burners

SM207-12 / 19202-79402
Click for photos
Stainless steel burner and venturi assembly kit for Fiesta model GD45067. Comes with all necessary gaskets and screws.

Part Number: 19202-79402 (Replaces Fiesta SM207-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

$71.75

Qty


19202
Click for photos
Stainless steel H burner for Fiesta model GD45067. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

$65.76

Qty


==> All Fiesta Burners.






GD45067 Venturis

SG-B
Click for photos
Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.25

Qty


79402
Click for photos
L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

$20.78

Qty


==> All Fiesta Venturis.






GD45067 Cooking Grids

58211
Click for photos
Porcelain steel cooking grid for Fiesta model GD45067. Porcelain enameled, glossy finish. Sold individually.

Part Number: 58211
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 26 9/16”
Material: porcelain steel wire
Weight: 4.12

$43.13

Qty


==> All Fiesta Cooking Grids.






GD45067 Rock/Briquette Grates

BG-2
Click for photos
Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

$28.14

Qty


==> All Fiesta Rock/Briquette Grates.






GD45067 Heat Plates

SP25-9G-SS
Click for photos
Stainless steel version replacement for original Smart Bar SP25-9G for Fiesta model GD45067. NOTE: The original part was porcelain coated steel. Far superior to the original, this aftermarket part is made of corrosion-resistant stainless steel for longer life.

Part Number: SP25-9G-SS
Dimension Front-to-Back: 10 1/2”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 3.0

$74.78

Qty


CLA-TS0234-X3
Click for photos
SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Fiesta model GD45067. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0234-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 5 1/8”
Material: stainless steel
Weight: 3.0

$60.10

Qty


==> All Fiesta Heat Plates.






GD45067 Igniter Components

IG-46B
Click for photos
Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.37

Qty


04300
Click for photos
Electrode kit.
  • Mounting bracket
  • Electrode with ceramic insulator
  • Wire with round connector
  • Protective sleeve

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04300
Material: ceramic
Weight: 0.1

$8.81

Qty


IG-15B
Click for photos
Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-15B
Weight: 0.3

$13.71

Qty


SP14A-20
Click for photos
Genuine OEM Fiesta rotary 2-outlet spark generator; includes knob, not shown in photo.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: SP14A-20
Weight: 0.08

$17.43

Qty


==> All Fiesta Igniter Components.






GD45067 Knobs and Handles

HANDLE 450 D LID BLACK

Part Number: SM5050-42B
Weight: 1.0

$24.02

Qty


KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

$5.15

Qty


==> All Fiesta Knobs and Handles.






GD45067 Miscellaneous Repair Parts

SM68-6
Click for photos
SMART ROD 345/400/450

Part Number: SM68-6
Dimensions: 12
Weight: 0.3

$2.48

Qty


==> All Fiesta Miscellaneous Repair Parts.






GD45067 Accessories

BQ-5
Click for photos
Durable 2 5/16” round briquettes
  • Self-cleaning
  • Control flare-ups while holding an even heat pattern.
  • About 53 pieces, covers approximately 275 sq. inches.
  • Fits all gas grills


Part Number: BQ-5
Weight: 7.2

$31.19

Qty


45887
Click for photos
Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

$24.48

Qty


00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All GD45067 Accessories.
