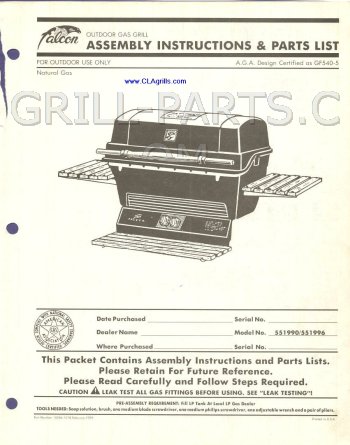

Falcon 551996 Grill Parts

Deluxe stainless steel twin-venturi burner and venturi assembly for Falcon model 551996. Includes:

• DLB stainless steel H burner.
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Two (2) V-12 stainless steel single venturi.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DLB+V-12
Dimensions: 8 1/8” x 19 1/2”
Material: stainless steel
Weight: 2.0

Deluxe stainless steel twin-venturi burner for Falcon model 551996. Includes:

• DLB stainless steel H burner (venturi not included).
• Deluxe burners have a special spot-welded mounting bracket for optional IG-5B universal tongue-style collector box and electrode. The IG-5B can be used in applications where the factory ignition system is irrepairable, non existant, or otherwise unusable.
• Venturi gasket and mounting nuts (venturi mounts with nuts and bolts, not screws).
• 5 year MHP limited warranty.
• Click here for features of MHP deluxe SS burner.

Part Number: DLB
Dimensions: 8 1/8” x 19 1/2”
Material: stainless steel
Weight: 2.0

two venturi gaskets with screws

Part Number: 00400
Dimensions: 3 1/16” x 1 1/4”
Weight: 0.05

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

Stainless steel corrugated tubing to resist rust and corrosion single venturi. O-Ring seat for positive gas seal. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4, sold individually.

Part Number: V-12
Dimensions: 11
Material: stainless steel
Weight: .3

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Stainless Steel cooking grid for Falcon model 551996.

• Made in USA
• Solid 1/4” 304 stainless rods
• Each panel measures 15” x 11 3/8”

Part Number: CG-12SS
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 3/8”
Material: stainless steel
Weight: 3.40

Cast iron cooking grids for Falcon model 551996. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61602
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 23 1/2”
Material: matte cast iron
Weight: 12.8

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-5
Dimension Front-to-Back: 12 1/2”
Dimension Side-to-Side: 22”
Material: carbon steel
Weight: 4.9

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Brass spud orifice with 5/16” x 32 thread size. Has #70 starter hole. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31600
Dimensions: 0 3/8” x 0 7/16”
Material: brass
Weight: 0.01

Dual brass LP valve assembly. Includes left and right control valves and valve manifold. Fits Arkla up-front control grills and others requiring 45 degree angle valves.

• For use with LP gas
• Includes two orifices drilled to #57 drill size
• Includes pre-assembled 45 degree angle fitting, not shown in photo

Part Number: VLV-28
Material: brass
Weight: 1.1

BBQ'er choice porcelain grill briquets. The finest available.

• Self-Cleaning Porcelain Briquettes.
• Made of fired porcelain for even heat transfer.
• Virtually indestructible.
• About 56 pieces covers approximately 310 square inches.
• Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

HOW TO GRILL The Complete Illustrated Book of Barbecue Techniques. Steve Raichlen presents a full-color, step-by-step technique book that gets to the core of the grilling experience by showing and telling exactly how it's done. With more than 1,000 photographs, if features over 100 techniques and recipes, from how to set up a three-zone fire to how to grill a perfect prime rib, to grilling pizza, shellfish, vegetables, tofu, fruit, and s'mores.

Part Number: 0-7611-2014-9
Dimensions: 8” x 9 1/4”
Material: Paperback
Weight: 3.0

4 Piece Stainless Steel Tool Set With Accents Turner, tong, and fork constructed of high gade, polished stainless steel, with soft grip accents. Silicone tip tongs heat resistant to 500 degrees farenheit. High quality grill brush.

Part Number: 40070
Material: stainless steel
Weight: 2.12

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Cast iron smoker box with six oblong venting holes. Fill with water-soaked wood chips and add smoke flavor to you food. Designed to release wood smoke.

• Works with both charcoal and gas grills.
• Easy to use and refill.
• Long lasting cast iron.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Non-Stick Wing Rack.

A convenient non-stick coated wire wing rack with folding legs, the best way to roast chicken legs and wings on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: 41551
Weight: 0.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
