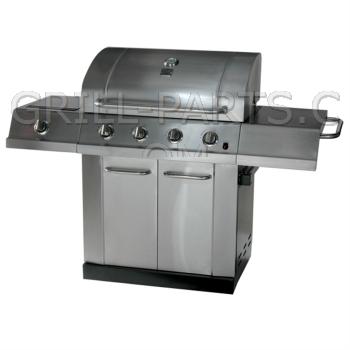

Charbroil 464224411 Grill Parts

Stainless steel burner for Charbroil model 464224411.

Part Number: CBP5 (Replaces Charbroil G517-7300-W1)
Dimensions: 15 7/8” x 1”
Material: stainless steel
Weight: 1.0

Burner crossover tube.

Part Number: 05590 (Replaces Charbroil G524-0036-W1)
Dimensions: 7 1/4” x 0 3/4”
Material: stainless steel
Weight: 0.1

Cast Iron Cooking Grid - Charbroil, Kenmore for Charbroil model 464224411.

Part Number: CG-100PCI
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 10”
Material: cast iron
Weight: 8.40

Cast iron cooking grids for Charbroil model 464224411. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 18 1/8” x 10”
• Overall dimensions: 18 1/8” x 30”

Part Number: CG-100PCI-X3 (Replaces Charbroil G524-0003-W1)
Dimension Front-to-Back: 18 1/8”
Dimension Side-to-Side: 30”
Material: cast iron
Weight: 25.2

Stainless steel Flame Tamer for Charbroil model 464224411.

Part Number: CBKENHP1 (Replaces Charbroil G524-0032-W1)
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 3/4”
Material: stainless steel
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

Electrode, gas collector box, and wire. The connecting wire has a flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center).

NOTE: This electrode is also sometimes used with push-button or rotary piezo ignitors, such as our part# 03100 and 03120, which have round connectors. When connecting 01472 electrode to ignitors with round connectors, use short wire part# 03199C to convert the electrode wire from a femal spade connector to a female round connector.

Part Number: 01472 (Replaces Charbroil G515-0014-W1)
Material: ceramic
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.

• 1.5 volt
• Has five (5) spark outlets (male spade connector)
• Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03352 (Replaces Charbroil G515-0030-W2)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
