Charbroil Quickset Traditional 463841804 Grill Parts

Charbroil logo



Charbroil 463841804

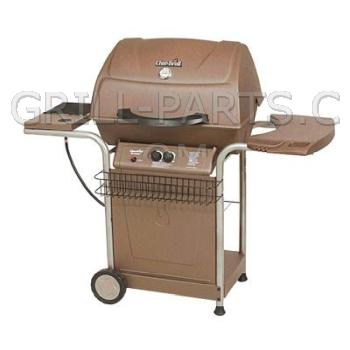

Char-Broil Quickset Traditional 8000 series 2-burner LP gas grill with side burner



Highest quality replacement parts for your Charbroil Quickset Traditional 463841804 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463841804 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463841804. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Charbroil Quickset Traditional 463841804
This page shows all of the parts we know fit model Charbroil 463841804. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463841804 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463841804 Cooking Grids

4152741 / 55801
Click for photos
Porcelain steel cooking grid for Charbroil model 463841804. Porcelain enameled, glossy finish. Sold individually.

Part Number: 55801 (Replaces Charbroil 4152741)
Dimension Front-to-Back: 14 23/32”
Dimension Side-to-Side: 26 5/8”
Material: porcelain steel wire
Weight: 6.2

$74.44

Qty


==> All Charbroil Cooking Grids.






463841804 Rock/Briquette Grates

BG-39
Click for photos
Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-39
Dimension Front-to-Back: 11”
Dimension Side-to-Side: 25”
Material: carbon steel
Weight: 4.0

$28.14

Qty


==> All Charbroil Rock/Briquette Grates.






463841804 Heat Plates

4500291 / CLA-TS0035
Click for photos
Stainless steel Flame Tamers for Charbroil model 463841804. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0035 (Replaces Charbroil 4500291)
Dimension Front-to-Back: 25 7/8”
Dimension Side-to-Side: 5 1/2”
Material: stainless steel
Weight: 1.4

$35.10

Qty


==> All Charbroil Heat Plates.






463841804 Igniter Components

IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


UP-9B
Click for photos
Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-9B
Weight: 0.2

$8.38

Qty


03199C
Click for photos
Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03199C
Weight: 0.05

$4.37

Qty


IG-28B
Click for photos
Collector Box and electrode for Charbroil top ported TBBC & TLBBC burners.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-28B
Weight: 0.2

$9.60

Qty


5156113 / 03120
Click for photos
Push-Button self-grounding piezo spark generator; requiers 3/4” mounting hole. Primary connector is a round male connector, so connecting wire needs to be female round connector. If needed, see part# 03199C for a short adapter wire that converts flat female spade connectors to female round. Secondary connector is a flat male spade connector used to conduct spark to a secondary electrode, such as a side burner, or used as a ground in some applications. See ground wire part# 03620. For more information, see our article Ignition 101.

Part Number: 03120 (Replaces Charbroil 5156113)
Weight: 0.1

$9.77

Qty


==> All Charbroil Igniter Components.






463841804 Warming Racks

AP-6A
Click for photos
Universal warming rack. For use on grills with at least 22” inside dimension.

Part Number: AP-6A
Dimensions: 6” x 21 1/2”
Material: Chrome steel
Weight: 1.3

$17.36

Qty


4152125 / 02125
Click for photos
Chrome steel bottom warming rack for Charbroil 8000 series U-burner grills. Was used with top rack 06449 that is no longer available.
Warning:No longer made to work with upper warming rack. Does not have eyelet holes on right and left sides of warming rack to support the upper warming rack.

Part Number: 02125 (Replaces Charbroil 4152125)
Dimensions: 26 1/4” x 10 1/2”
Material: chrome steel wire
Weight: 1.14

$32.04

Qty


==> All Charbroil Warming Racks.






463841804 Heat indicators and Meat Thermometers

4157171 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil 4157171)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.11

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463841804 Accessories

BQ-3A
Click for photos
BBQ'er choice porcelain grill briquets. The finest available.
  • Self-Cleaning Porcelain Briquettes.
  • Made of fired porcelain for even heat transfer.
  • Virtually indestructible.
  • About 56 pieces covers approximately 310 square inches.
  • Made in USA.
NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

$42.81

Qty


BQ-5
Click for photos
Durable 2 5/16” round briquettes
  • Self-cleaning
  • Control flare-ups while holding an even heat pattern.
  • About 53 pieces, covers approximately 275 sq. inches.
  • Fits all gas grills


Part Number: BQ-5
Weight: 7.2

$31.19

Qty


45887
Click for photos
Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

$24.48

Qty


VTC-B
Click for photos
Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

$4.93

Qty


==> All 463841804 Accessories.
