Charbroil Designer 463420510 Grill Parts

Charbroil 463420510

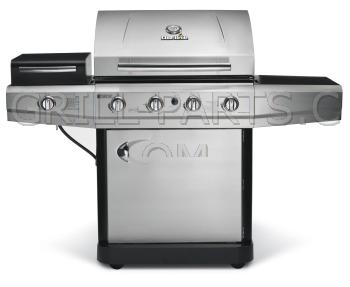

Char-Broil Designer Series 4-Burner LP gas BBQ grill with side burner

Highest quality replacement parts for your Charbroil Designer 463420510 - Free USA shipping $49 or more* - No Sales Tax*

Charbroil 463420510 owners manual and diagrams

Click the small images on the right to view Charbroil 463420510 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Charbroil 463420510-463564948930-PartsExpS1.jpg

Replacement BBQ grill parts for Charbroil Designer 463420510

On this page you'll find all of the parts that fit model Charbroil 463420510. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463420510 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

463420510 Burners

G431-0300-W1 / CBP6

Click for photos

Stainless steel burner for Charbroil model 463420510.

Part Number: CBP6 (Replaces Charbroil G431-0300-W1)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

==> All Charbroil Burners.

463420510 Burner Brackets and Carryovers

G413-0004-W1 / CBCO1

Click for photos

Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil G413-0004-W1)
Dimensions: 7
Material: stainless steel
Weight: 0.05

==> All Charbroil Burner Brackets and Carryovers.

463420510 Cooking Grids

50193

Click for photos

Channel formed U-shaped porcelain steel cooking grids for Charbroil model 463420510. Channel formed means rolled steel stamped into a U-shape; is not solid round rods. Porcelain enameled, glossy finish. Sold as a set of three (3).

Part Number: 50193
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 28 5/16”
Material: porcelain steel channels
Weight: 6.7

CG-97P-CI

Click for photos

Cast Iron Cooking Grid - Charbroil for Charbroil model 463420510.

Part Number: CG-97P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 4.65

G432-0002-W1 / CG-97P-CI-X3

Click for photos

Cast Iron Cooking Grids for Charbroil model 463420510. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Charbroil G432-0002-W1)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

==> All Charbroil Cooking Grids.

463420510 Heat Plates

G433-0016-W1 / CBHP5

Click for photos

Stainless steel heat plate/Flame Tamer for Charbroil model 463420510.

Part Number: CBHP5 (Replaces Charbroil G433-0016-W1)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 0.7

==> All Charbroil Heat Plates.

463420510 Igniter Components

03750

Click for photos

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

G409-0021-W1 / 03342

Click for photos

Small AA battery powered push button spark generator.

1.5 volt
Has two (2) terminals (male spade connector)
Uses a single AA battery (not included)
03610 and 03620 wires are commonly used with this igniter (not included)
Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03342 (Replaces Charbroil G409-0021-W1)
Weight: 0.3

G501-0010-W1 / 04432

Click for photos

Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04432 (Replaces Charbroil G501-0010-W1)
Dimensions: 4”
Material: ceramic
Weight: 0.1

IG-46B

Click for photos

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

IG-19B

Click for photos

Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-19B
Weight: 0.1

==> All Charbroil Igniter Components.

463420510 Knobs and Handles

01800

Click for photos

Universal black control knob. Counter-clockwise bezel.

Off position D-Value: Selectable
Knob diameter: 2 1/16”
Socket diameter: 8mm
Knob shaft: None

Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

G430-0026-W2 / 01700

Click for photos

Black control knob for Fire Magic Custom, Regal, and Gourmet grills.

Off position D-Value: 6 o'clock
Knob diameter: 2”
Socket diameter: 8mm
Knob shaft: None

Part Number: 01700 (Replaces Charbroil G430-0026-W2)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

==> All Charbroil Knobs and Handles.

463420510 Heat indicators and Meat Thermometers

G515-0031-W1 / 00012

Click for photos

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

Requires minimum 3/8” mounting hole
Single 1 3/8” probe
Threaded portion of probe stops at 1/2” from base
See photo for details

Part Number: 00012 (Replaces Charbroil G515-0031-W1)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

==> All Charbroil Heat indicators and Meat Thermometers.

463420510 Accessories

SSST

Click for photos

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.

Part Number: SSST
Material: stainless steel
Weight: 1.5

00030

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

==> All 463420510 Accessories.
