Charbroil 463221311 Grill Parts

Charbroil logo



Charbroil 463221311

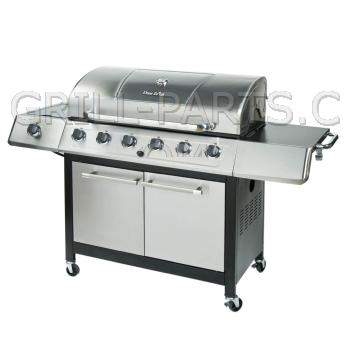

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463221311 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463221311 owners manual and diagrams
Click the small images on the right to view Charbroil 463221311 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463221311-463544858830-PartsExpS1.jpg

Replacement grill parts to fit Charbroil model: 463221311
All of the parts we have for Charbroil 463221311 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463221311 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463221311 Burners

G431-0300-W2 / NGKT1
Click for photos
Stainless steel burner for Charbroil model 463221311.

Part Number: NGKT1 (Replaces Charbroil G431-0300-W2)
Dimensions: 14 7/8” x 1”
Material: stainless steel
Weight: 1.0

$33.61

Qty


==> All Charbroil Burners.






463221311 Burner Brackets and Carryovers

G501-0015-W1 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil G501-0015-W1)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90

Qty


==> All Charbroil Burner Brackets and Carryovers.






463221311 Cooking Grids

G432-0002-W1 / CG-97P-CI-X3
Click for photos
Cast Iron Cooking Grids for Charbroil model 463221311. SET OF THREE (3).

Part Number: CG-97P-CI-X3 (Replaces Charbroil G432-0002-W1)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 9 5/16”
Material: cast iron
Weight: 13.95

$84.87

Qty


==> All Charbroil Cooking Grids.






463221311 Heat Plates

G430-0005-W1 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463221311.

Part Number: CBHP6 (Replaces Charbroil G430-0005-W1)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47

Qty


==> All Charbroil Heat Plates.






463221311 Igniter Components

IG-46B
Click for photos
Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.37

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


G501-0010-W1 / 04432
Click for photos
Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04432 (Replaces Charbroil G501-0010-W1)
Dimensions: 4”
Material: ceramic
Weight: 0.1

$9.89

Qty


G501-0010-W2 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil G501-0010-W2)
Material: ceramic
Weight: 0.1

$12.47

Qty


G651-5103-W1 / 05223
Click for photos
electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 05223 (Replaces Charbroil G651-5103-W1)
Material: ceramic
Weight: 0.1

$9.42

Qty


G651-1300-W1 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Charbroil G651-1300-W1)
Weight: 0.3

$31.52

Qty


03750
Click for photos
20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$5.77

Qty


==> All Charbroil Igniter Components.






463221311 Heat indicators and Meat Thermometers

G431-0020-W1 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W1)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$15.11

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






463221311 Accessories

40240
Click for photos
16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

$16.60

Qty


BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11

Qty


WB-8RH
Click for photos
Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

$9.45

Qty


==> All 463221311 Accessories.
