Broilmaster R3BN-1 Grill Parts

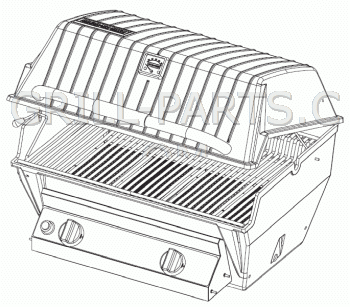

Broilmaster R3BN-1

Highest quality replacement parts for your Broilmaster R3BN-1 - Free USA shipping $49 or more* - No Sales Tax*

Broilmaster R3BN-1 owners manual and diagrams

Diagrams & owners manual not available for grill model# R3BN-1. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Broilmaster model: R3BN-1

All of the parts we have for Broilmaster R3BN-1 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Broilmaster grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broilmaster R3BN-1 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broilmaster model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

R3BN-1 Burners

B101030

Click for photos

T3 Burner, sold individually, (2 required), fits T3 all for Broilmaster model R3BN-1.

Part Number: B101030
Dimensions: 14 5/16” x 7 3/8”
Weight: 1.15

B102180

Click for photos

Infrared burner, with removable screen for Broilmaster model R3BN-1. Includes B101271 electrode and connecting wire. Used in R3, two required and used in R3B, one required.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 24

Part Number: B102180
Weight: 5.7

B102181

Click for photos

Infrared burner removable screen for infrared burner B102180 for Broilmaster model R3BN-1.

Part Number: B102181
Weight: 1.0

==> All Broilmaster Burners.

R3BN-1 Cooking Grids

DPA111

Click for photos

Stainless steel rod cooking grids for size 3 grill head (set of 2) for Broilmaster model R3BN-1.

Heavy gauge 8mm rod construction
Restaurant quality stainless steel
2 piece set
Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Part Number: DPA111
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 25 1/2”
Material: Stainless steel
Weight: 15.8

62503

Click for photos

Cast iron ”water fall style/mutliple level” cooking grids (set of 3) for Broilmaster model R3BN-1. Porcelain enameled, glossy finish.

Part Number: 62503
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 25 1/8”
Material: gloss cast iron
Weight: 21.10

==> All Broilmaster Cooking Grids.

R3BN-1 Rock/Briquette Grates

B101369

Click for photos

Briquet Rack for R3B Only - Covers Blue Flame Burner Side.

Part Number: B101369
Dimension Front-to-Back: 12 1/4”
Dimension Side-to-Side: 13 5/16”
Material: porcelain steel
Weight: 3.45

==> All Broilmaster Rock/Briquette Grates.

R3BN-1 Heat Plates

B101154

Click for photos

Burner Shield for T3 for Broilmaster model R3BN-1.

Part Number: B101154
Weight: 1.0

DPP106

Click for photos

Stainless steel heat shield for Broilmaster model R3BN-1. Fits T3 (all). Also replaces part# B101045.
AKA part# B101104.

Part Number: DPP106
Dimension Front-to-Back: 8”
Dimension Side-to-Side: 16 3/4”
Material: Stainless steel
Weight: 1.0

==> All Broilmaster Heat Plates.

R3BN-1 Igniter Components

B101212

Click for photos

Collector Box Ass. (Single Piece, 2 required), fits all T3. Also replaces part# B101031.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B101212
Weight: 0.1

B101082

Click for photos

Ignitor aluminum tube spacer 1/2” x 1 5/8”.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B101082
Weight: 0.01

B101271

Click for photos

Electrode and wire for infrared burner Ignitor (2 req for R3, 1 req for R3B) fits R3, R3B).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B101271
Weight: 0.05

B072218

Click for photos

Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4

Uses 1 AA battery (not included)
Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B072218
Weight: 0.2

==> All Broilmaster Igniter Components.

R3BN-1 Knobs and Handles

R3918

Click for photos

Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).

Off position D-Value: 12 o'clock
Knob diameter: 2 1/2”
Socket diameter: 5/16”
Knob shaft: None (flat)

Part Number: R3918
Weight: 0.2

==> All Broilmaster Knobs and Handles.

R3BN-1 Heat indicators and Meat Thermometers

TG-2B

Click for photos

Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2” bolt centers. Stainless steel case.

Part Number: TG-2B
Weight: 0.2

==> All Broilmaster Heat indicators and Meat Thermometers.

R3BN-1 Accessories

45887

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

BQ-5

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

FS-1

Click for photos

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

BRGG

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

WB-3

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

==> All R3BN-1 Accessories.
