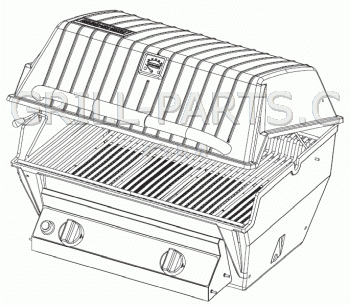

Broilmaster R3-1 Grill Parts

Highest quality replacement parts for your Broilmaster R3-1 - Free USA shipping $49 or more* - No Sales Tax*

Broilmaster R3-1 owners manual and diagrams

Diagrams & owners manual not available for grill model# R3-1. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Broilmaster model: R3-1

This page shows all of the parts we know fit model Broilmaster R3-1. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Broilmaster grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broilmaster R3-1 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broilmaster model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

R3-1 Burners

Click for photos

Infrared burner, with removable screen for Broilmaster model R3-1. Includes B101271 electrode and connecting wire. Used in R3, two required and used in R3B, one required.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 24

Part Number: B102180
Weight: 5.7

Click for photos

Infrared burner removable screen for infrared burner B102180 for Broilmaster model R3-1.

Part Number: B102181
Weight: 1.0

==> All Broilmaster Burners.

R3-1 Cooking Grids

Click for photos

Stainless steel rod cooking grids for size 3 grill head (set of 2) for Broilmaster model R3-1.

Heavy gauge 8mm rod construction
Restaurant quality stainless steel
2 piece set
Fits: P3, D3, DU3, R3, U3, S3, G3, and R3.

Note: This is the same as part# B101281. Also replaces cast iron grid DPP103, which is no longer available.

Part Number: DPA111
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 25 1/2”
Material: Stainless steel
Weight: 15.8

Click for photos

Cast iron ”water fall style/mutliple level” cooking grids (set of 3) for Broilmaster model R3-1. Porcelain enameled, glossy finish.

Part Number: 62503
Dimension Front-to-Back: 16 13/16”
Dimension Side-to-Side: 25 1/8”
Material: gloss cast iron
Weight: 21.10

==> All Broilmaster Cooking Grids.

R3-1 Heat Plates

Click for photos

Stainless steel heat shield for Broilmaster model R3-1. Fits T3 (all). Also replaces part# B101045.
AKA part# B101104.

Part Number: DPP106
Dimension Front-to-Back: 8”
Dimension Side-to-Side: 16 3/4”
Material: Stainless steel
Weight: 1.0

==> All Broilmaster Heat Plates.

R3-1 Igniter Components

Click for photos

Ground Lug, Fits All Models

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B069747
Weight: 0.01

Click for photos

Ground Wire, Fits All Electronic Models

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B072684
Weight: 0.1

Click for photos

Electrode and wire for infrared burner Ignitor (2 req for R3, 1 req for R3B) fits R3, R3B).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B101271
Weight: 0.05

Click for photos

Electronic ignitor head with two (2) male spade connectors. Fits 3/P4/P5/D3/D4

Uses 1 AA battery (not included)
Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: B072218
Weight: 0.2

==> All Broilmaster Igniter Components.

R3-1 Knobs and Handles

Click for photos

Knob-Burners-Main and Side, Fits SSG-36-1, T3 (all).

Off position D-Value: 12 o'clock
Knob diameter: 2 1/2”
Socket diameter: 5/16”
Knob shaft: None (flat)

Part Number: R3918
Weight: 0.2

==> All Broilmaster Knobs and Handles.

R3-1 Heat indicators and Meat Thermometers

Click for photos

Universal bolt-on heat indicator replaces most factory installed indicators with 1 1/2” bolt centers. Stainless steel case.

Part Number: TG-2B
Weight: 0.2

==> All Broilmaster Heat indicators and Meat Thermometers.

R3-1 Accessories

Click for photos

Cast iron smoker box with six oblong venting holes. Designed to release wood smoke. Make sure this part will fit into your grill before ordering 8 3/8” x 5 1/4” x 1 3/8”.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Click for photos

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

Click for photos

Chrome plated rib/potatoe rack. Spaces up to 6 racks of ribs and 6 potatoes. Fits all grills. 12” x 7 1/4”.

Part Number: RR-2
Material: chrome steel
Weight: 1.0

==> All R3-1 Accessories.
