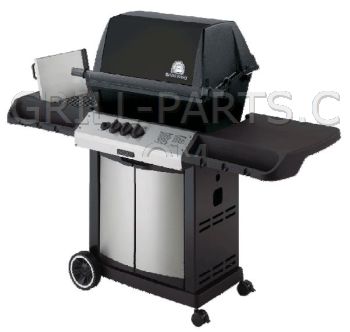

Broil King 950-47 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 950-47. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Genuine OEM Broil King Side Burner for Broil King model 950-47. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Genuine OEM Broil King Cover, side burner for Broil King model 950-47.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

Genuine OEM Broil King side burner grid for Broil King model 950-47.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

Stainless Steel cooking grid for Broil King model 950-47. 50% T45

Part Number: 10225-T424
Weight: 1.0

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 950-47. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Genuine OEM Broil King electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Push nut 3/8

Part Number: S21420
Weight: 0.1

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10184-E78A
Dimensions: 9 3/4
Weight: 0.36

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Dimensions: 10
Weight: .25

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Dimensions: 10
Weight: .25

Shelf support, left.

Part Number: 10184-R581
Weight: 1.5

SHELF SUPPORT RH BLK(18”)

Part Number: 10184-R591
Weight: 1.0

Cherry wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00240
Weight: 1.14

2 in 1 chrome plated turner / tong with PVC coated handle

Part Number: 40730
Dimensions: 14
Material: chrome steel
Weight: 0.6

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
