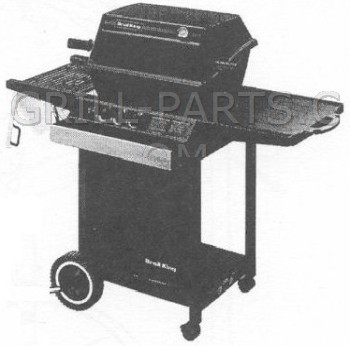

Broil King Crown 4 942-44 Grill Parts

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 942-44.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

Genuine OEM Broil King side burner grid for Broil King model 942-44.

Part Number: 10225-T10
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 8 3/8”
Weight: 2.4

Heat Plate/ Flame Tamer not known for Broil King model 942-44. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Broil King push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Genuine OEM Broil King control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 5/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

Genuine OEM Broil King Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Bolt

Part Number: Y-6616
Weight: 0.02

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil King Cover, side burner.

Part Number: 10393-K40
Dimensions: 14 7/8” x 11”
Material: stainless steel
Weight: 1.9

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8
