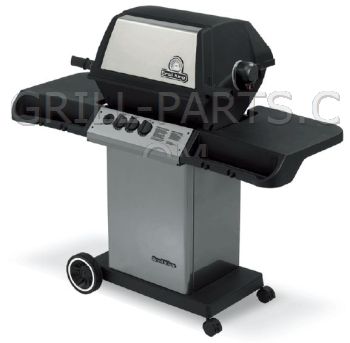

Broil King Monarch 70 9346-77 Grill Parts

Broil King 9346-77

Highest quality replacement parts for your Broil King Monarch 70 9346-77 - Free USA shipping $49 or more* - No Sales Tax*

Broil King 9346-77 owners manual and diagrams

Click the small images on the right to view Broil King 9346-77 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil King 9346-77-3056332232-PartsExpS1.gif

Broil King 9346-77-3056332232-PartsExpS1.jpg

Broil King 9346-77-3056332232-PartsLstS1.gif

Broil King 9346-77-3056332232-PartsLstS1.jpg

Broil King 9346-77-3056332232-PartsLstS2.gif

Replacement grill parts for the Broil King Monarch 70 9346-77

All of the parts we have for Broil King 9346-77 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 9346-77 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

9346-77 Burners

10390-T401

Click for photos

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 9346-77.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

S13006

Click for photos

Genuine OEM Broil King stainless steel rear tube burner for Broil King model 9346-77.

Part Number: S13006
Dimensions: 22 1/8”
Material: Stainless steel
Weight: 0.8

==> All Broil King Burners.

9346-77 Cooking Grids

10225-T356

Click for photos

Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9346-77.

Sold individually
Number required varies, check your grill
Porcelain treated, flat matte finish

Part Number: 10225-T356
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 10 3/4”
Material: Cast iron
Weight: 6.1

63262

Click for photos

Cast iron cooking grids for Broil King model 9346-77. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 63262
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: matte cast iron
Weight: 15.1

==> All Broil King Cooking Grids.

9346-77 Heat Plates

10222-T325

Click for photos

Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 9346-77.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

==> All Broil King Heat Plates.

9346-77 Heat Shields

10184-R78

Click for photos

Genuine OEM Broil King radiation shield. FIts Monarch ped.

Part Number: 10184-R78
Dimensions: 9 1/4” x 16 1/2”
Weight: 1.08

==> All Broil King Heat Shields.

9346-77 Igniter Components

10342-244

Click for photos

Electronic push-button 1-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole
Also replaces part 10342-248

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-244
Weight: 0.3

10342-T301

Click for photos

Genuine OEM Broil King collector box and electrode assembly. Includes:

burner mounted box with mounting screw
ceramic electrode and 17” wire with round connector and protective sleeve
Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

==> All Broil King Igniter Components.

9346-77 Grease Trays

S15115

Click for photos

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

==> All Broil King Grease Trays.

9346-77 Knobs and Handles

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

==> All Broil King Knobs and Handles.

9346-77 Regulators and Hoses

10111-K45

Click for photos

Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil King Regulators and Hoses.

9346-77 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-13

Click for photos

Genuine OEM Broil King twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

==> All Broil King Wheels and Castors.

9346-77 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil King Heat indicators and Meat Thermometers.

9346-77 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

S21362

Click for photos

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

S21420

Click for photos

Push nut 3/8

Part Number: S21420
Weight: 0.1

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

==> All Broil King Miscellaneous Repair Parts.

9346-77 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil King Shelves.

9346-77 Accessories

BP-7

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

41333

Click for photos

Stainless steel chicken roaster. Commonly called Beer Can roasters.

The best way to roast poultry on the grill
For use in barbecues and ovens
Dishwasher safe
Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

WB-8

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All 9346-77 Accessories.
