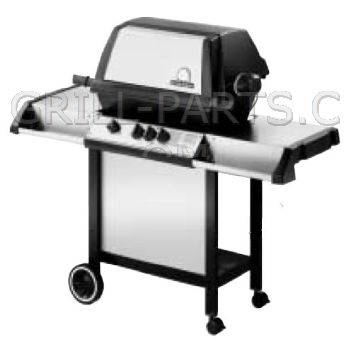

Broil King Signet 30 5532-4 Grill Parts

Broil King logo



Broil King 5532-4



Highest quality replacement parts for your Broil King Signet 30 5532-4 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 5532-4 owners manual and diagrams
Click the small images on the right to view Broil King 5532-4 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 5532-4-344544633-PartsExpS1.gif  Broil King 5532-4-344544633-PartsLstS1.gif  Broil King 5532-4-344544633-PartsLstS2.gif

Replacement grill parts for Broil King Signet 30 (5532-4)
This page shows all of the parts we know fit model Broil King 5532-4. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Broil King grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil King 5532-4 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



5532-4 Burners

S10017
Click for photos
Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 5532-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

$74.45


==> All Broil King Burners.






5532-4 Cooking Grids

CG-21SS
Click for photos
Premium grade solid stainless steel grid with 1/4” rods for Broil King model 5532-4. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

$49.81


==> All Broil King Cooking Grids.






5532-4 Heat Plates

10222-T425
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 5532-4. Also replaces porcelain-steel lava rock/briquette grate part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

$58.85


==> All Broil King Heat Plates.






5532-4 Igniter Components

10342-245
Click for photos
Genuine OEM Broil King electronic push-button 2-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole
  • Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-245
Weight: 0.3

$19.40


S15500
Click for photos
Genuine OEM Broil King collector box and electrode assembly. Includes
  • burner mounted collector box (clip on)
  • ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: S15500
Weight: 0.1

$5.45


==> All Broil King Igniter Components.






5532-4 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11


==> All Broil King Grease Trays.






5532-4 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15


10472-K431
Click for photos

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2 1/4”
  • Socket diameter: 5/16”
  • Knob stem: 1/2”


Part Number: 10472-K431
Weight: 0.1

$5.94


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95


==> All Broil King Knobs and Handles.






5532-4 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Weight: 0.8

$35.70


==> All Broil King Regulators and Hoses.






5532-4 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19


10892-15
Click for photos
Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

$6.11


==> All Broil King Wheels and Castors.






5532-4 Warming Racks

CLA-WS0192
Click for photos
Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

$49.62


==> All Broil King Warming Racks.






5532-4 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$21.20


==> All Broil King Heat indicators and Meat Thermometers.






5532-4 Miscellaneous Repair Parts

S21362
Click for photos
REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

$1.08


Y-6616
Click for photos
Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

$1.08


S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08


==> All Broil King Miscellaneous Repair Parts.






5532-4 Accessories

BP-5
Click for photos
Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

$9.75


FS-1
Click for photos
Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

$18.27


11040
Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

  • Ideal for searving or grilling appetizers
  • Wide end for easy handling


Part Number: 11040
Dimensions: 7
Weight: 0.4

$4.75


42055
Click for photos

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.



Part Number: 42055
Dimensions: 13
Weight: 0.2

$8.76


98121
Click for photos
Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

$27.92


BRGG
Click for photos
Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

$20.11


==> All 5532-4 Accessories.
