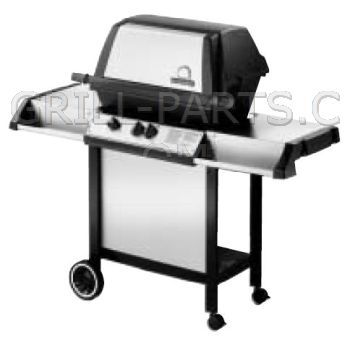

Broil King Signet 20 5512-4 Grill Parts

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 5512-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Premium grade solid stainless steel grid with 1/4” rods for Broil King model 5512-4. Sold individually, two (2) required.

Part Number: CG-21SS
Dimension Front-to-Back: 15 1/4”
Dimension Side-to-Side: 11”
Material: stainless steel
Weight: 4.00

Heat Plate/ Flame Tamer not known for Broil King model 5512-4. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Broil King collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Broil King 64” premium grill cover 67488. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 540, 590 Series grills
• Crown 20, 40 Series grills, post model
• Signet 20 Series grills
• Sovereign 20, 70, 90 grills

Dimensions:

• Side-to-Side: 64”
• Height: 45.5”
• Front-to-Back: 23”

Part Number: 67488
Weight: 6.0

Broil King 64” premium grill cover 68488. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for Broil King models:

• Baron™ 500 Series
• Signet™ Series ( Prior to 2013 )
• Signet™ 20 ( 2013 to 2015 )
• Sovereign™ 20,70,90 ( Prior to 2013 )
• Crown™ 20, 40 ( After 2012 )

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 64”
• Height: 47.5”
• Front-to-Back: 23”

Part Number: 68488
Weight: 6.0

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.

Part Number: 10892-15
Weight: 0.35

Premium grade stainless steel warming rack. This rack made to replace part numbers S12205, S12206, and S12207, which are no longer available from the manufacturer. Made in USA

Part Number: CLA-WS0192
Dimensions: 10 1/2” x 23 1/8”
Material: stainless steel
Weight: 4.8

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Bolt

Part Number: Y-6616
Weight: 0.02

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Bamboo Appetizer 7” Skewers - pack of eight. Limited to supplies on hand.


Part Number: 11040
Dimensions: 7
Weight: 0.4

Marinade Injector.

For injecting flavor and marinades into meat. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Porcelain Coated Grill Topper.
11” x 16” Single draw construction for improved rigidity. Stainless steel handles and raised contours for improved functionality.

Part Number: 97122
Dimensions: 16” x 11 1/2”
Material: porcelain steel
Weight: 1.10

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
