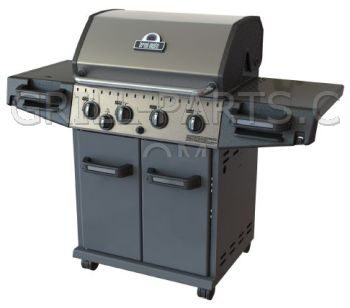

Sterling 5123-64 Grill Parts

Genuine OEM Sterling stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Sterling model 5123-64. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

Genuine OEM Sterling Side Burner for Sterling model 5123-64. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

COVER SIDE BURNER BLACK for Sterling model 5123-64.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

SIDE BURNER GRID BLK 330/440/550 for Sterling model 5123-64. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

Replacement for OEM part numbers 11241, 52002-181, 52005-281, 52007-181 cast iron cooking grids per the manufacturer for Sterling model 5123-64. SOLD INDIVIDUALLY.
NOTE: The number of pieces required varies by grill size. Check your grill's cooking grids support area to determine the number of panels needed.

Part Number: 52001-981
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 6 1/10”
Material: cast iron
Weight: 3.65

Genuine OEM Sterling stainless steel Flav-R-Wave for Sterling model 5123-64.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

Genuine stainless steel one piece collector box. Per manufacturer, replaces part number 52225-014A that was upper and lower pieces. The replacement accomodates four burners, like the orginal.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 52015-903
Dimensions: 19 1/8
Material: stainless steel
Weight: .5

Genuine OEM Sterling electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Genuine OEM Sterling electrode with 14” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Sterling 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Sterling Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive early Nov

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

CONTROL KNOB SMALL W/BA STRIP.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 7/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 10472-K231
Weight: 0.1

DOOR HANDLE RESIN *

Part Number: 21475-138
Weight: 1.0

CASTER BRACKET 21 3/4” LONG

Part Number: 21039-911
Weight: 2.05

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

WARMING RACK 440 PORC (back support rod 25 5/8” and front support rod 26 3/16” warming rack 7 3/8” x 25”).

Part Number: 52005-991
Dimensions: 25 5/8
Weight: 3.3

Genuine OEM Sterling Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Washer

Part Number: S21255
Weight: 0.01

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

LID BUMPER

Part Number: Y-11231
Weight: 0.01

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Bamboo Appetizer 7” Skewers - pack of eight. Limited to supplies on hand.


Part Number: 11040
Dimensions: 7
Weight: 0.4

GrillPro EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

This tank gauge will monitor your propane level, while you grill, and let's you know when you're running low on gas.

The magnetic tank gauge offers fast, accurate propane level monitoring for any size LP tank. The magnetic backing makes it easy to attach, remove, and reuse across multiple tanks—perfect for grilling, camping, patio heaters, and more

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
