Sterling 5020-54 Grill Parts

Sterling logo

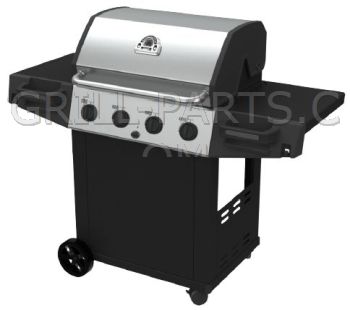

Sterling 5020-54



Highest quality replacement parts for your Sterling 5020-54 - Free USA shipping $49 or more* - No Sales Tax*



Sterling 5020-54 owners manual and diagrams
Click the small images on the right to view Sterling 5020-54 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Sterling 5020-54-3494994632-PartsExpS1.gif  Sterling 5020-54-3494994632-PartsExpS2.gif  Sterling 5020-54-3494994632-PartsLstS1.gif  Sterling 5020-54-3494994632-PartsLstS2.gif

Replacement BBQ grill parts for Sterling model: 5020-54
On this page you'll find all of the parts that fit model Sterling 5020-54. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Sterling grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Sterling 5020-54 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Sterling model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



5020-54 Burners

52924-144
Click for photos
Genuine OEM Sterling stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Sterling model 5020-54. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

$20.19

Qty


23000-251
Click for photos
COVER SIDE BURNER BLACK for Sterling model 5020-54.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

$10.97

Qty


SIDE BURNER GRID BLK 330/440/550 for Sterling model 5020-54. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

$18.40

Qty


==> All Sterling Burners.






5020-54 Cooking Grids

COOKING GRID CAST IRON 330/440/550 (Sold individually; number required varies, check your grill for Sterling model 5020-54.)

Part Number: 52002-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 12 3/4”
Material: cast iron
Weight: 6.75

$43.16

Qty


==> All Sterling Cooking Grids.






5020-54 Heat Plates

52209-404
Click for photos
Genuine OEM Sterling stainless steel Flav-R-Wave for Sterling model 5020-54.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

$21.94

Qty


==> All Sterling Heat Plates.






5020-54 Igniter Components

52225-014A
Click for photos
Genuine stainless steel two piece collector box assembly. Consists of both upper and lower pieces.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 52225-014A
Dimensions: 23
Material: stainless steel
Weight: 1.0

$28.26

Qty


10342-245
Click for photos
Genuine OEM Sterling electronic push-button 2-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole
  • Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-245
Weight: 0.3

$16.46

Qty


10342-E13
Click for photos
Genuine OEM Sterling electrode with 14 3/8” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-E13
Weight: 0.05

$3.81

Qty


==> All Sterling Igniter Components.






5020-54 Grease Trays

27249-904
Click for photos
Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

$7.60

Qty


57055-901
Click for photos
Grease tray 440; porcelain flatte matte finish.

Part Number: 57055-901
Dimensions: 6 3/4” x 25 7/16”
Material: porcelain steel
Weight: 1.25

$27.25

Qty


22009-901
Click for photos
Genuine OEM Sterling Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

$15.12

Qty


==> All Sterling Grease Trays.






5020-54 Knobs and Handles

24005-12A
Click for photos
LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

$25.87

Qty


10472-K431
Click for photos
CONTROL KNOB RESIN LRG BLACK -- W/SS BA STRIP

Part Number: 10472-K431
Weight: 0.1

$5.15

Qty


==> All Sterling Knobs and Handles.






5020-54 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Sterling 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


51339-401
Click for photos
CASTER BRACKET 440 BLK RESIN

Part Number: 51339-401
Weight: 0.1

$2.83

Qty


10892-23
Click for photos
Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

$6.87

Qty


==> All Sterling Wheels and Castors.






5020-54 Warming Racks

52005-991
Click for photos
WARMING RACK 440 PORC (back support rod 25 5/8” and front support rod 26 3/16” warming rack 7 3/8” x 25”).

Part Number: 52005-991
Dimensions: 25 5/8
Weight: 3.3

$35.18

Qty


==> All Sterling Warming Racks.






5020-54 Heat indicators and Meat Thermometers

10571-5
Click for photos
Genuine OEM Sterling Heat indicator. About 1 7/8” wide and 1 7/16” high. The threaded stem is about 5/16” diameter and 1 1/8” long.

Part Number: 10571-5
Dimensions: 1 7/8” x 1 7/16”
Weight: 0.1

$15.12

Qty


==> All Sterling Heat indicators and Meat Thermometers.






5020-54 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


==> All Sterling Miscellaneous Repair Parts.






5020-54 Hardware

Y-11231
Click for photos
LID BUMPER

Part Number: Y-11231
Weight: 0.01

$1.08

Qty


==> All Sterling Hardware.






5020-54 Accessories

WB-1
12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

$10.90

Qty


==> All 5020-54 Accessories.
