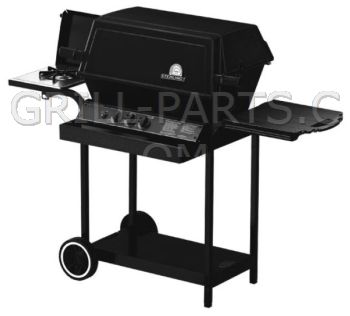

Sterling 2522-4 Grill Parts

Genuine OEM Sterling stainless steel burner and venturi assembly for Sterling model 2522-4. Includes burner-mounted igniter electrode and wire part# S15500. Fully assembled.

Part Number: S10017
Dimensions: 8” x 20 1/2”
Material: Stainless steel
Weight: 3.5

Genuine OEM Sterling Side Burner for Sterling model 2522-4. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

SIDE BURNER COVER BLK for Sterling model 2522-4.

Part Number: 10393-T401
Weight: 1.0

Cooking grid not known for Sterling model 2522-4. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Sterling cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Heat Plate/ Flame Tamer not known for Sterling model 2522-4. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Genuine OEM Sterling push button igniter. For two-wire grills with second wire for side burner. Wires not included.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-22
Weight: 0.2

Genuine OEM Sterling collector box and electrode assembly. Includes

• burner mounted collector box (clip on)
• ceramic electrode and 18” wire with round connector and protective sleeve.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: S15500
Weight: 0.1

Genuine OEM Sterling 21” wire for side burner or other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T12
Dimensions: 21
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Genuine OEM Sterling control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 5/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

KNOB SIDE BURNER

Part Number: 10472-71-2
Weight: 0.1

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Genuine OEM Sterling NG gas hose.

Part Number: 10111-K45
Weight: 2.1

Genuine OEM Sterling 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

Gas control assembly for natuarl gas models. NG-3V. Includes valves, no hose.

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 10442-T53
Weight: 1.4

Genuine OEM Sterling Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Bolt

Part Number: Y-6616
Weight: 0.02

Leg end cap.

Part Number: S21346
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
