PermaSteel PG-40503S0L Grill Parts

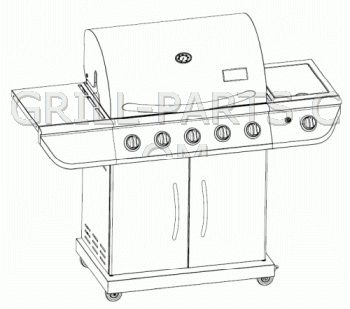

Permasteel 5-Burner LP gas grill with side burner

Highest quality replacement parts for your PermaSteel PG-40503S0L - Free USA shipping $49 or more* - No Sales Tax*

PermaSteel PG-40503S0L owners manual and diagrams

Click the small images on the right to view PermaSteel PG-40503S0L exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

PermaSteel PG-40503S0L-4EE69495599838-PartsExpS1.gif

PermaSteel PG-40503S0L-4EE69495599838-PartsLstS1.gif

Replacement grill parts to fit PermaSteel model: PG-40503S0L

All of the parts we have for PermaSteel PG-40503S0L are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for PermaSteel grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct PermaSteel PG-40503S0L BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your PermaSteel model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

PG-40503S0L Burners

Click for photos

Adjustable universal front-to-back tube burner with top-ported flame holes for PermaSteel model PG-40503S0L. This burner may not work with existing ignition electrodes and back burner cross-overs.

Variable length burner adjusts from 13 1/2” to 17 1/2”.
Includes extra hardware and mounting brackets to accommodate almost all grills.
Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.

Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

==> All PermaSteel Burners.

PG-40503S0L Cooking Grids

Cooking grid not known for PermaSteel model PG-40503S0L. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the PermaSteel cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All PermaSteel Cooking Grids.

PG-40503S0L Heat Plates

Click for photos

Stainless steel heat plate/ Flame Tamer for PermaSteel model PG-40503S0L.

Part Number: KENHP3
Dimension Front-to-Back: 14 15/16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 0.6

Click for photos

SET OF FOUR/4 PACK Stainless steel heat plate for PermaSteel model PG-40503S0L. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0193-X4
Dimension Front-to-Back: 14 15/16”
Dimension Side-to-Side: 3 3/4”
Material: stainless steel
Weight: 2.6

==> All PermaSteel Heat Plates.

PG-40503S0L Igniter Components

Click for photos

Electrode and wire. Includes mounting bolt and nut. Wire connects to spark generator with flat female spade connector, which is typically used with electronic (battery operated) ignitors (see Ignition 101 in our help center). Includes an extra 16” connector wire with flat female spade end and male spade end for some applications (not shown in photo).

Part Number: 00162
Material: ceramic
Weight: 0.1

==> All PermaSteel Igniter Components.

PG-40503S0L Heat indicators and Meat Thermometers

Click for photos

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

==> All PermaSteel Heat indicators and Meat Thermometers.

PG-40503S0L Accessories

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

==> All PG-40503S0L Accessories.

BBQ Part Categories

PermaSteel PG-40503S0L -Sunday, May 5 2024
