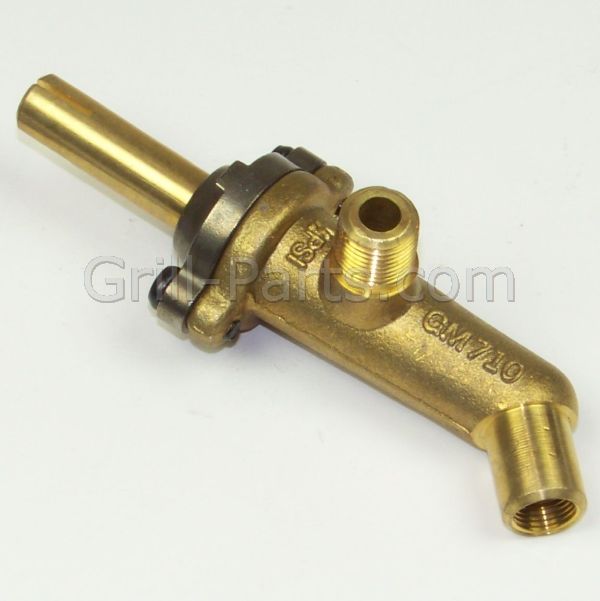

Valve with 45° angled orifice snout built to accept 11/32 x 32 threaded spud type orifice (not provided); uses orifice # 33200. Mounts to the right side of original up-front control manifold assembly. Valve stem is 8mm, and needs a knob with a 9 D-value. Can use with universal knobs 00110 or 00310 or 01800 depending on needed knob stem length.
Part Number: 38600
Dimensions: 3 9/16” x 1 1/4”
Material: brass
Weight: 0.4
