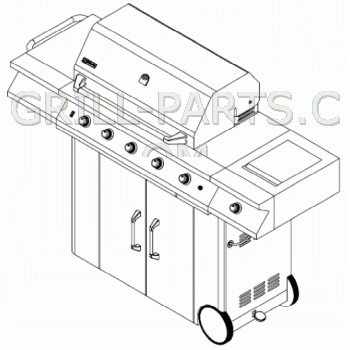

Jenn-Air 720-0512 Grill Parts

Burner made of commercial 304 grade stainless steel for Jenn-Air model 720-0512. Sold individually, number required varies by grill.

Part Number: JATB1 (Replaces Jenn-Air 10000117A0)
Dimensions: 15 7/8” x 4 1/2”
Material: stainless steel
Weight: 0.7

Cast iron cooking grids for Jenn-Air model 720-0512. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/4” x 10 3/8”
• Overall dimensions: 19 1/4” x 31 1/8”

Part Number: CG-69P-CI-X3
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 31 1/8”
Material: cast iron
Weight: 21.3

Premium quality heavy duty stainless steel cooking grid for Jenn-Air model 720-0512. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 10 1/4”
• Made in USA.
• Sold individually.

See part CLA-GS0005-X3 for a more economical 3-pack.

Part Number: CLA-GS0005 (Replaces Jenn-Air 13000031A0)
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 1/4”
Material: stainless steel
Weight: 6.3

Premium quality stainless steel cooking grid for Jenn-Air model 720-0512. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it.

• 304 commercial grade stainless steel
• 1/4” diameter solid stainless rods
• Dimensions: 18 7/8” x 10”
• Made in USA.
• Sold individually.

Part Number: CLS9151
Dimension Front-to-Back: 18 7/8”
Dimension Side-to-Side: 10”
Material: solid stainless steel
Weight: 4.0

Cast iron cooking grid for Jenn-Air model 720-0512.

• Sold inividually
• Porcelain treated, matte finish
• Number required varies by grill model
• Each panel measures 19 1/4” x 10 3/8”

Part Number: CG-69P-CI
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 7.10

Stainless steel Flame Tamer for Jenn-Air model 720-0512.

Part Number: NGCHP2
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 6 3/8”
Material: stainless steel
Weight: 0.7

SET OF THREE/3 PACK Stainless steel Flame Tamer/heat plate for Jenn-Air model 720-0512.

This heat plate also provides an economical alternative to some other heat plates with the same front-to-back dimension.

• Sold individually, number required varies.
• Shipped with protective peel-off coating, remove before use.
• Made in USA.

Part Number: CLA-TS0020-X3
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 6 3/8”
Material: stainless steel
Weight: 2.4

SET OF FOUR/4 PACK Stainless steel Flame Tamer/heat plate for Jenn-Air model 720-0512.

This heat plate also provides an economical alternative to some other heat plates with the same front-to-back dimension.

• Sold individually, number required varies.
• Shipped with protective peel-off coating, remove before use.
• Made in USA.

Part Number: CLA-TS0020-X4
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 6 3/8”
Material: stainless steel
Weight: 3.2

Replacement electrode for use with burner 13361.

• Ceramic insulator
• 22” wire with female spade connector
• Locking nuts

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03361
Material: ceramic
Weight: 0.2

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.

• 1.5 volt
• Has five (5) spark outlets (male spade connector)
• Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03352 (Replaces Jenn-Air 07000062A0)
Dimensions: 3 3/8” x 2”
Weight: 0.7

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
