Fiesta GD45079-NG Grill Parts

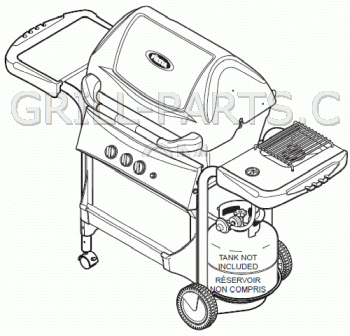

Fiesta dual-burner natural gas grill with rotisserie burner and side burner

Highest quality replacement parts for your Fiesta GD45079-NG - Free USA shipping $49 or more* - No Sales Tax*

Fiesta GD45079-NG owners manual and diagrams

Click the small images on the right to view Fiesta GD45079-NG exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Fiesta GD45079-NG-4EB6492000E839-PartsExpS1.gif

Fiesta GD45079-NG-4EB6492000E839-PartsLstS1.gif

Replacement BBQ grill parts for Fiesta model: GD45079-NG

This page shows all of the parts we know fit model Fiesta GD45079-NG. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Fiesta grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Fiesta GD45079-NG BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

GD45079-NG Cooking Grids

Click for photos

Porcelain steel cooking grid for Fiesta model GD45079-NG. Porcelain enameled, glossy finish. Sold individually.

Part Number: 58211 (Replaces Fiesta SP102A-3)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 26 9/16”
Material: porcelain steel wire
Weight: 4.12

==> All Fiesta Cooking Grids.

GD45079-NG Rock/Briquette Grates

Click for photos

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

==> All Fiesta Rock/Briquette Grates.

GD45079-NG Heat Plates

Click for photos

Stainless steel version replacement for original Smart Bar SP25-9G for Fiesta model GD45079-NG. NOTE: The original part was porcelain coated steel. Far superior to the original, this aftermarket part is made of corrosion-resistant stainless steel for longer life.

Part Number: SP25-9G-SS
Dimension Front-to-Back: 10 1/2”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 3.0

Click for photos

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Fiesta model GD45079-NG. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0234-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 5 1/8”
Material: stainless steel
Weight: 3.0

==> All Fiesta Heat Plates.

GD45079-NG Knobs and Handles

KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

Click for photos

Side burner knob.

Off position D-Value: 6 o'clock
Knob diameter: 2 3/16”
Socket diameter: 5/16”
Knob shaft: 1/8”

Part Number: SP9-7
Weight: 0.1

==> All Fiesta Knobs and Handles.

GD45079-NG Regulators and Hoses

HOSE CLAMP NG

Part Number: SP34-15
Weight: 1.0

==> All Fiesta Regulators and Hoses.

GD45079-NG Miscellaneous Repair Parts

Click for photos

SMART ROD 345/400/450

Part Number: SM68-6
Dimensions: 12
Weight: 0.3

==> All Fiesta Miscellaneous Repair Parts.

GD45079-NG Accessories

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All GD45079-NG Accessories.
