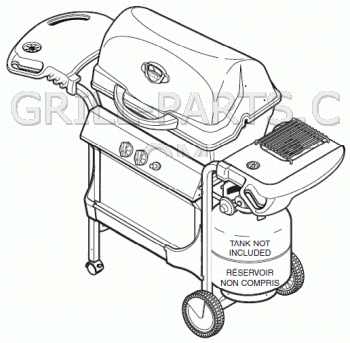

Fiesta ET40062 Grill Parts

Stainless steel burner and venturi assembly kit for Fiesta model ET40062. Comes with all necessary gaskets and screws.

Part Number: 19202-79202 (Replaces Fiesta SM202A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

Stainless steel H burner for Fiesta model ET40062. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

L-shaped twin venturi. Includes all necessary gaskets and screws/nuts.

Part Number: 79202
Dimensions: 4 1/2” x 2 7/8”
Material: zinc plated steel
Weight: 0.8

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Porcelain steel cooking grids for Fiesta model ET40062. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 54302
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 26”
Material: porcelain steel wire
Weight: 5.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2 (Replaces Fiesta SP109-3)
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

Heat Plate/ Flame Tamer not known for Fiesta model ET40062. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Genuine OEM Fiesta control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2”
• Socket diameter: 5/16”
• Knob shaft: None (flat)

Part Number: SP7-7
Weight: 0.1

Side burner knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 5/16”
• Knob shaft: 1/8”

Part Number: SP9-7
Weight: 0.1

Small locking caster with a slide-on mounting stud that is 5/16” in diameter. The caster wheel diameter is 1 1/2”.

Part Number: SP6-22
Weight: .10

Genuine OEM Fiesta stainless steel warming rack.

Part Number: SP5018-3
Dimensions: 8” x 30 1/4”
Material: stainless steel
Weight: 1.8

VHR ASSEMBLY 40062

Part Number: SP151A-4
Weight: 1.0

LOGO GUAGE FIESTA A/T LID

Part Number: SP23A-30
Weight: 0.5

BBQ'er choice porcelain grill briquets. The finest available.

• Self-Cleaning Porcelain Briquettes.
• Made of fired porcelain for even heat transfer.
• Virtually indestructible.
• About 56 pieces covers approximately 310 square inches.
• Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
